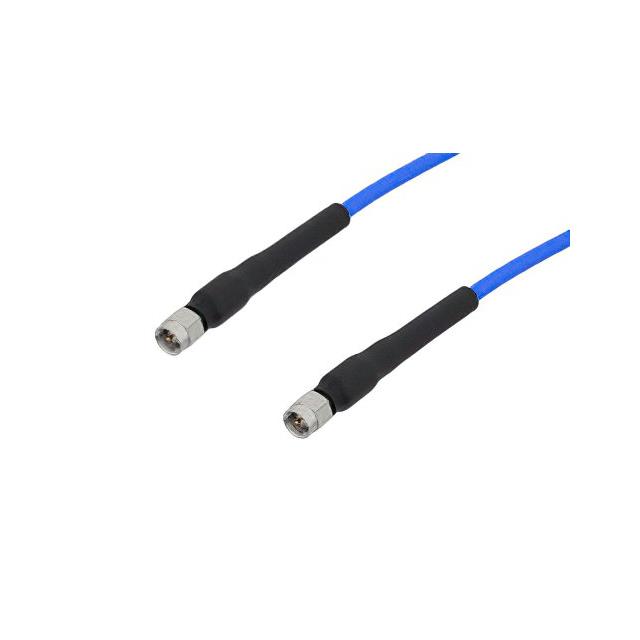

PE300-120
ActivePasternack
SMA MALE TO SMA MALE CABLE 120 I
PE300-120
ActivePasternack
SMA MALE TO SMA MALE CABLE 120 I
Description
General part information
PE300-120
Cable Assembly Coaxial SMA to SMA 120.0" (3.0m) 10.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | PE300-120 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 18 GHz |
| Length | 120 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA |
