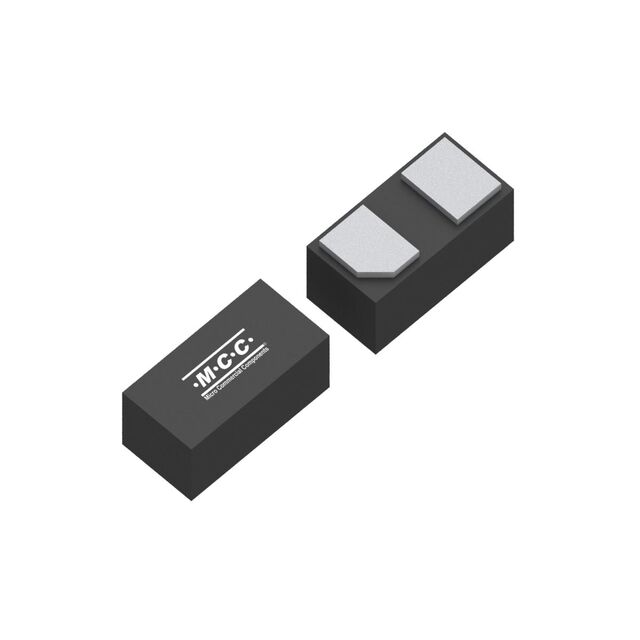

ESDSBLC8V0AE2-TP
ActiveMCC (Micro Commercial Components)
TVS DIODE 8VWM 18VC 0201-A
ESDSBLC8V0AE2-TP
ActiveMCC (Micro Commercial Components)
TVS DIODE 8VWM 18VC 0201-A
Description
General part information
ESDSBLC8V0AE2-TP
18V Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount 0201-A
Technical Specifications
Parameters and characteristics for this part
| Specification | ESDSBLC8V0AE2-TP |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels | 1 |
| Capacitance | 5 pF |
| Current - Peak Pulse | 4 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0201 (0603 Metric) |
| Package Name | 0201-A |
| Power - Peak Pulse | 70 W |
| Power Line Protection | No |
| Type | Zener |
| Voltage - Breakdown (Min) | 9 V |
| Voltage - Clamping (Max) | 18 V |
| Voltage - Reverse Standoff (Max) | 8 V |
