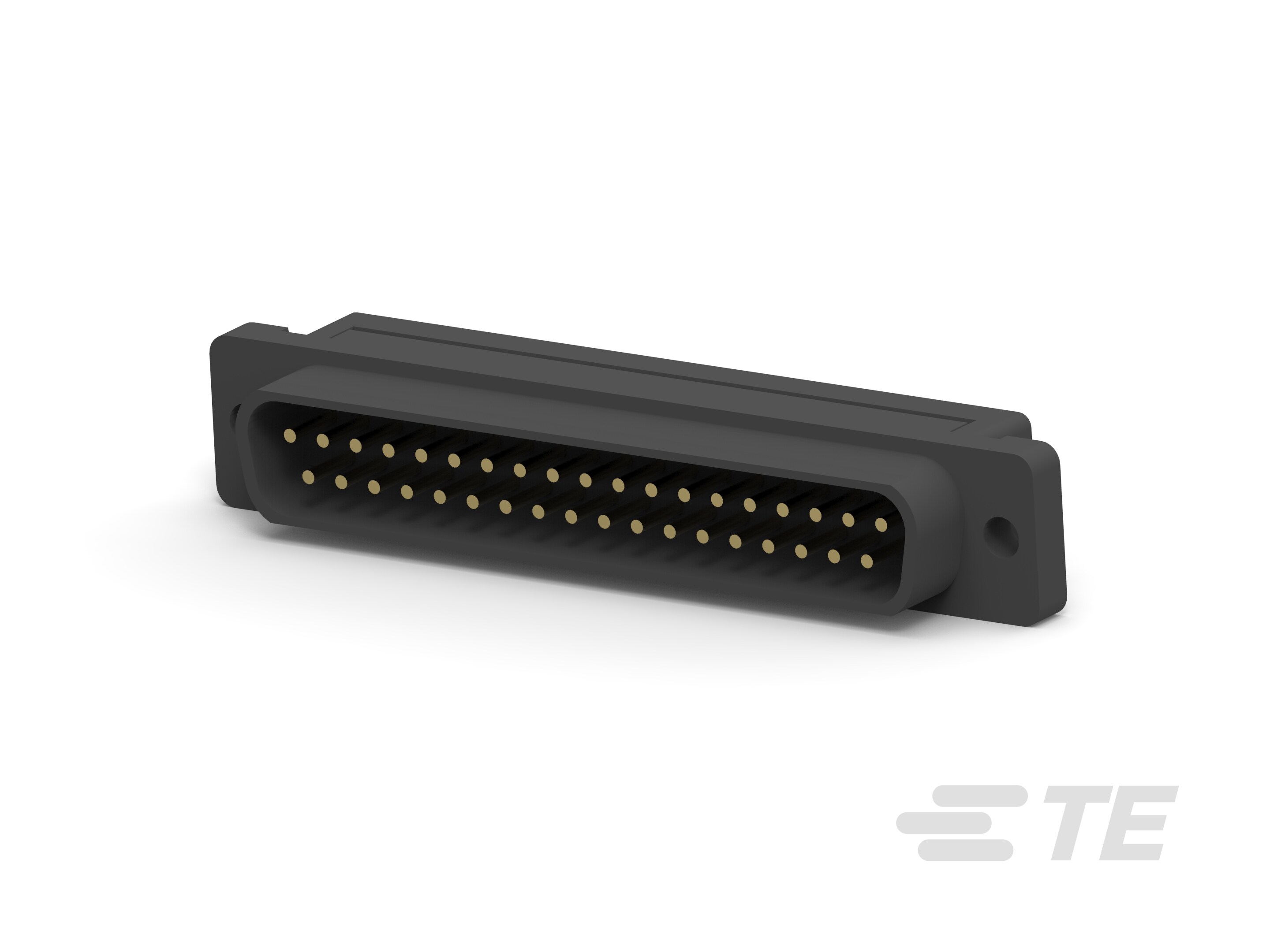

Specification	1658615-1

Color	Black
Connector Layout	DC, C
Connector Style	D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating	1.25 A
Dielectric Material	Thermoplastic
Features	Feed Through
Flange Feature	Shell (Unthreaded), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	37 pos
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Shell Size	4
Termination	IDC, Ribbon Cable
Wire Gauge	Stranded or Solid
Wire Gauge (AWG) (Max)	28 AWG
Wire Gauge (AWG) (Min)	26 AWG

AMPLIMITE HDF Series

Part	Connector Style	Features	Number of Positions	Connector Type	Current Rating	Material Flammability Rating	Contact Type	Shell Size	Connector Layout	Flange Feature	Number of Rows	Mounting Type	Termination	Contact Finish	Accessory Type	Length - Below Head	For Use With/Related Products	Thread Size (Min)	Thread Size (Max)	Contact Finish Thickness	Wire Gauge (AWG) (Min)	Wire Gauge	Wire Gauge (AWG) (Max)	Color	Operating Temperature (Min)	Operating Temperature (Max)	Contact Material	Dielectric Material	Finish	Shell Material	Contact Finish Thickness (string set options)	Contact Finish Thickness
TE Connectivity AMP Connectors 1658611-3	D-Sub	Feed Through	15	Male Pins Plug	1.25 A	UL94 V-0	Signal	2	A DA	Housing Shell (4-40)	2	Free Hanging (In-Line)	IDC Ribbon Cable	Gold
TE Connectivity AMP Connectors 5746881-2		Clip													Jackscrew Slotted	0.3 in	AMPLIMITE Series HDE HDP	4 mm	40 mm
TE Connectivity AMP Connectors 1658614-3	D-Sub	Feed Through	15	Female Sockets Receptacle	1.25 A	UL94 V-0	Signal	2	A DA	Housing Shell (Unthreaded)	2	Free Hanging (In-Line)	IDC Ribbon Cable	Gold						30 µin	26 AWG	Stranded or Solid	28 AWG	Black	-55 °C	105 °C	Phosphor Bronze	Thermoplastic
TE Connectivity AMP Connectors 747275-2			25												Strain Relief		AMPLIMITE Series HDF-20 Ribbon Cable Connectors
TE Connectivity AMP Connectors 1658610-4	D-Sub	Feed Through	9	Female Sockets Receptacle	1.25 A	UL94 V-0	Signal	1	DE E	Housing Shell (4-40)	2	Free Hanging (In-Line)	IDC Ribbon Cable	Gold						30 µin									Tin Plated	Steel
TE Connectivity AMP Connectors 1658610-2	D-Sub	Feed Through	25	Female Sockets Receptacle	1.25 A	UL94 V-0	Signal	3	B DB	Housing Shell (4-40)	2	Free Hanging (In-Line)	IDC Ribbon Cable	Gold						30 µin	26 AWG	Stranded or Solid	28 AWG	Black	-55 °C	105 °C	Phosphor Bronze	Thermoplastic	Tin Plated	Steel
TE Connectivity AMP Connectors 5746861-4	D-Sub	Feed Through	9	Female Sockets Receptacle	1.25 A	UL94 V-0	Signal	1	DE E	Housing Shell (4-40)	2	Free Hanging (In-Line)	IDC Ribbon Cable	Gold						30 µin									Tin Plated	Steel
TE Connectivity AMP Connectors 5746862-4	D-Sub	Feed Through Grounding Indents	9	Male Pins Plug	1.25 A		Signal	1	DE E	Housing Shell (4-40)	2	Free Hanging (In-Line)	IDC Ribbon Cable	Gold						0				Black	-55 °C	105 °C		Thermoplastic	Tin Plated	Steel	Flash	Flash
TE Connectivity AMP Connectors 1658609-3	D-Sub	Feed Through	15	Female Sockets Receptacle	1.25 A	UL94 V-0	Signal	2	A DA	Housing Shell (4-40)	2	Free Hanging (In-Line)	IDC Ribbon Cable	Gold						30 µin
TE Connectivity AMP Connectors 1658612-4	D-Sub	Feed Through	9	Female Sockets Receptacle	1.25 A	UL94 V-0	Signal	1	DE E	Housing Shell (Unthreaded)	2	Free Hanging (In-Line)	IDC Ribbon Cable	Gold						30 µin	26 AWG	Stranded or Solid	28 AWG	Black	-55 °C	105 °C	Phosphor Bronze	Thermoplastic	Tin Plated	Steel
