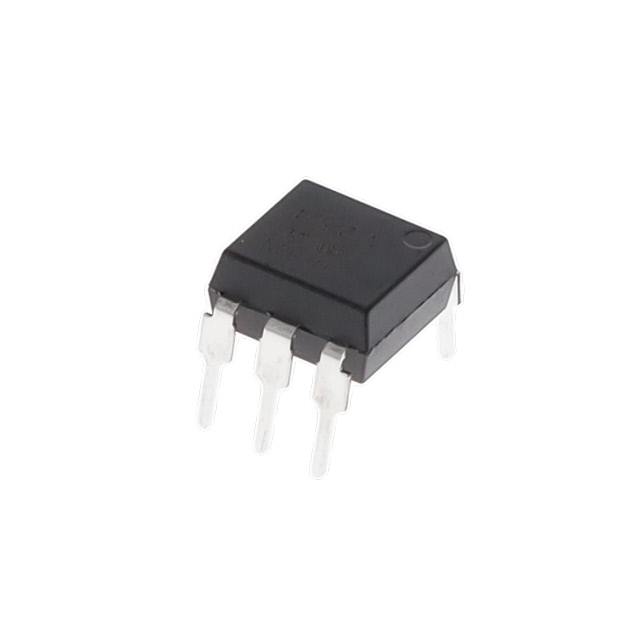

CQY80N

Active

Vishay General Semiconductor - Diodes Division

OPTOISO 5KV TRANS W/BASE 6DIP

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

OPTOISO 5KV TRANS W/BASE 6DIP

Technical Specifications

Parameters and characteristics for this part

Specification	CQY80N

Current - DC Forward (If) (Max) [Max]	60 mA
Current - Output / Channel	50 mA
Current Transfer Ratio (Min) [Min]	50 %
Input Type	DC
Mounting Type	Through Hole
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-55 °C
Package / Case	6-DIP
Package / Case	0.3 in
Package / Case	7.62 mm
Rise / Fall Time (Typ) [custom]	6.7 µs
Rise / Fall Time (Typ) [custom]	7 µs
Supplier Device Package	6-DIP
Turn On / Turn Off Time (Typ)	7 µs, 11 µs
Vce Saturation (Max) [Max]	300 mV
Voltage - Forward (Vf) (Typ)	1.25 V
Voltage - Output (Max) [Max]	32 V

Part	Input Type	Number of Channels	Vce Saturation (Max) [Max]	Package / Case	Package / Case	Package / Case	Current Transfer Ratio (Min) [Min]	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Turn On / Turn Off Time (Typ)	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Current - Output / Channel	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Voltage - Output (Max) [Max]	Mounting Type	Package / Case
Vishay General Semiconductor - Diodes Division CQY80N	DC	1	300 mV	6-DIP	0.3 in	7.62 mm	50 %	60 mA	100 °C	-55 °C	7 µs 11 µs	6-DIP	1.25 V	50 mA	6.7 µs	7 µs	32 V	Through Hole
Vishay General Semiconductor - Diodes Division CQY80NG	DC	1	300 mV	6-DIP		10.16 mm	50 %	60 mA	100 °C	-55 °C	7 µs 11 µs	6-DIP	1.25 V	50 mA	6.7 µs	7 µs	32 V	Through Hole	10.16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-DIP
