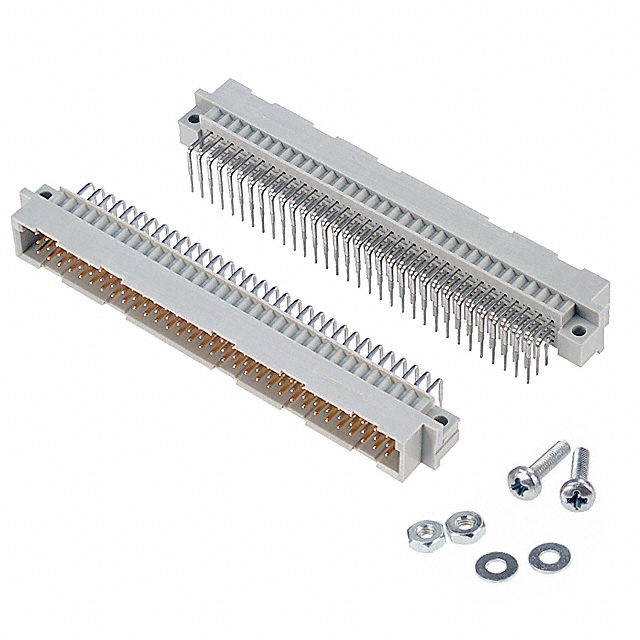

RE96MSR-125
ActiveVector Electronics
CONN DIN HDR 96POS PCB RA GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RE96MSR-125 |
|---|---|
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Material - Insulation | Polycarbonate, Glass Filled |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 96 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Style | 1 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.87 | |
| 10 | $ 14.06 | |||
| 100 | $ 12.26 | |||
| 1000 | $ 9.59 | |||
Description
General part information
RE96MSR Series
96 Position Din Connector Header, Male Pins Gold Through Hole, Right Angle
