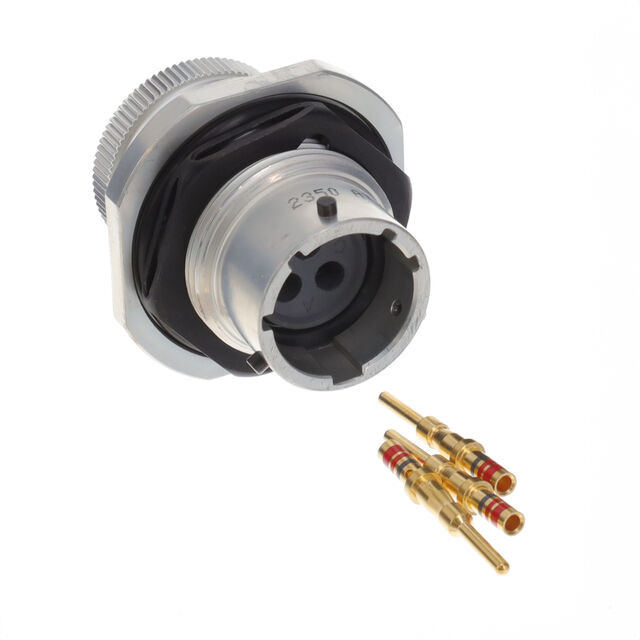

VG95328D12-3PNJ
ActiveMcGill Microwave Systems
VG95328 3C 3#16 PIN JAM NUT RECP
VG95328D12-3PNJ
ActiveMcGill Microwave Systems
VG95328 3C 3#16 PIN JAM NUT RECP
Description
General part information
VG95328D12-3PNJ
3 Position Circular Connector Receptacle, Male Pins Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | VG95328D12-3PNJ |
|---|---|
| Applications | Military |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Reverse Bayonet Lock |
| Number of Positions | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | N (Normal) |
| Shell Finish | Zinc-Tin |
| Shell Size - Insert Length | 12 mm |
| Shell Size - Insert Width | 3 mm |
| Shielding | Shielded |
| Termination | Crimp |
