1031A 0101000

Active

Belden Inc.

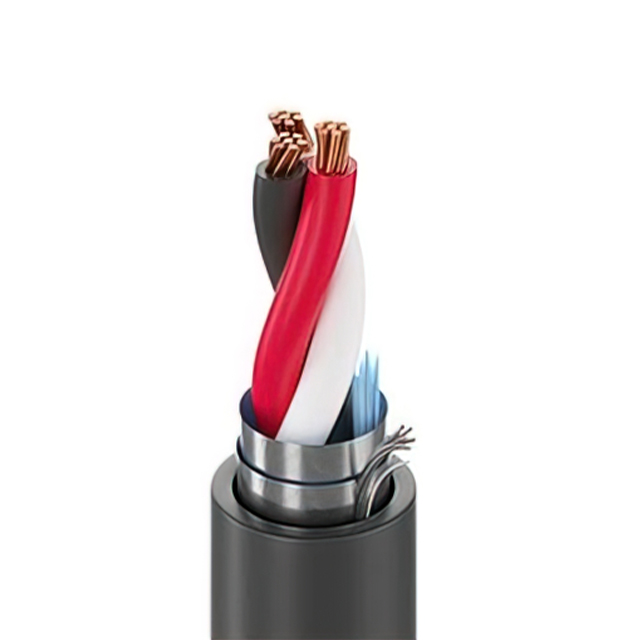

CABLE 3COND 16AWG BLK SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 16AWG BLK SHLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1031A 0101000	1031A Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare	Copper, Bare
Conductor Strand [custom]	7	7
Conductor Strand [custom]	24	24
Features	Rip Cord, Drain Wire	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.299 in	0.299 in
Jacket (Insulation) Diameter [diameter]	7.6 mm	7.6 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.94 mm	0.94 mm
Jacket (Insulation) Thickness	0.037 in	0.037 in
Jacket Color	Black	Black, Blue
Length	1000 ft	1000 ft
Length	304.8 m	304.8 - 3048 m
Length	-	10000 ft
Number of Conductors	3	3
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-30 ░C	-30 ░C
Ratings	UL Style 2464	UL Style 2464
Shield Coverage	100 %	100 %
Shield Material	Aluminum	Aluminum
Shield Type	Foil	Foil
Voltage	300 V	300 V
Wire Gauge	16 AWG	16 AWG

CABLE 3 COND 16AWG BLACK

Part	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Shield Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Features	Wire Gauge	Conductor Insulation	Number of Conductors	Jacket (Insulation) Material	Conductor Material	Shield Coverage	Length
Belden Inc. 1031A 01010000	Black	0.299 in	7.6 mm	3048 m	10000 ft	7	24	300 V	Foil	0.94 mm	0.037 in	Aluminum	Multi-Conductor	-30 ░C	105 ░C	UL Style 2464	Drain Wire, Rip Cord	16 AWG	Poly-Vinyl Chloride (PVC)	3	Poly-Vinyl Chloride (PVC)	Copper, Bare	100 %
Belden Inc. 1031A 0105000	Black	0.299 in	7.6 mm			7	24	300 V	Foil	0.94 mm	0.037 in	Aluminum	Multi-Conductor	-30 ░C	105 ░C	UL Style 2464	Drain Wire, Rip Cord	16 AWG	Poly-Vinyl Chloride (PVC)	3	Poly-Vinyl Chloride (PVC)	Copper, Bare	100 %
Belden Inc. 1031A 0101000	Black	0.299 in	7.6 mm	304.8 m		7	24	300 V	Foil	0.94 mm	0.037 in	Aluminum	Multi-Conductor	-30 ░C	105 ░C	UL Style 2464	Drain Wire, Rip Cord	16 AWG	Poly-Vinyl Chloride (PVC)	3	Poly-Vinyl Chloride (PVC)	Copper, Bare	100 %	1000 ft
Belden Inc. 1031A 0061000	Blue	0.299 in	7.6 mm	304.8 m		7	24	300 V	Foil	0.94 mm	0.037 in	Aluminum	Multi-Conductor	-30 ░C	105 ░C	UL Style 2464	Drain Wire, Rip Cord	16 AWG	Poly-Vinyl Chloride (PVC)	3	Poly-Vinyl Chloride (PVC)	Copper, Bare	100 %	1000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.76

General part information

3 (1 Triad Twisted) Conductor Multi-Conductor Cable Black 16 AWG Foil 1000.0' (304.8m)
