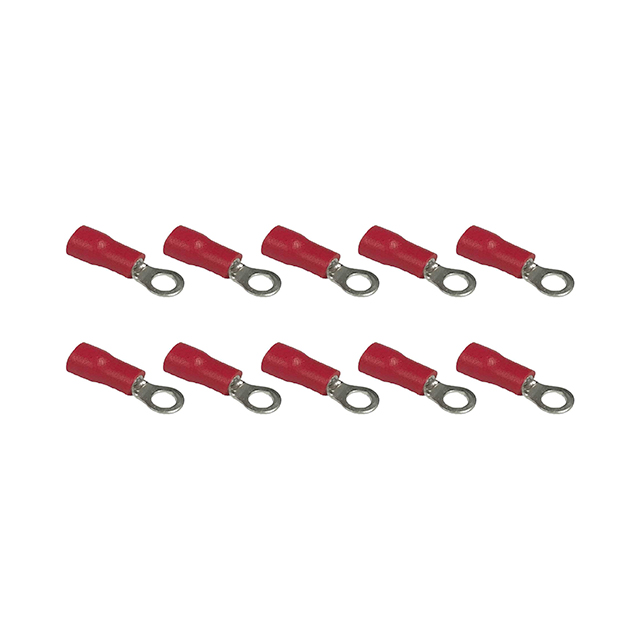

RVS1.25-3.5-10
ActiveRemington Industries
RING TERMINALS, PVC INSULATED, 1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RVS1.25-3.5-10 | RVS1.25 Series |
|---|---|---|
| Color | Red | Red |
| Contact Finish | Tin | Tin |
| Contact Material | Copper | Copper |
| Insulation | Insulated | Insulated |
| Length - Overall | - | 0.764 in |
| Length - Overall | - | 19.41 mm |
| Length - Overall [x] | 0.689 in | 0.689 - 0.819 in |
| Length - Overall [x] | 17.5 mm | 17.5 - 20.8 mm |
| Material - Insulation | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Stud/Tab Size | 6 Stud | 6 - 10 Stud |
| Stud/Tab Size | - | 8 Stud |
| Terminal Type | Circular | Circular |
| Termination | Crimp | Crimp |
| Thickness | 0.03 in | 0.03 in |
| Thickness | 0.76 mm | 0.76 mm |
| Width - Outer Edges | - | 8 mm |
| Width - Outer Edges | - | 0.315 in |
| Width - Outer Edges [y] | 5.5 mm | 5.5 - 6.6 mm |
| Width - Outer Edges [y] | 0.217 in | 0.217 - 0.26 in |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 16 AWG | 16 AWG |
RVS1.25 Series
RING TERMINALS, PVC INSULATED, 1
| Part | Material - Insulation | Insulation | Color | Contact Finish | Mounting Type | Contact Material | Width - Outer Edges [y] | Width - Outer Edges [y] | Termination | Stud/Tab Size | Wire Gauge [Max] | Wire Gauge [Min] | Terminal Type | Length - Overall | Length - Overall | Thickness | Thickness | Length - Overall [x] | Length - Overall [x] | Stud/Tab Size | Width - Outer Edges | Width - Outer Edges |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Remington Industries RVS1.25-4-100 | Poly-Vinyl Chloride (PVC) | Insulated | Red | Tin | Free Hanging (In-Line) | Copper | 6.6 mm | 0.26 in | Crimp | 8 Stud | 22 AWG | 16 AWG | Circular | 0.764 in | 19.41 mm | 0.03 in | 0.76 mm | |||||
Remington Industries RVS1.25-5-10 | Poly-Vinyl Chloride (PVC) | Insulated | Red | Tin | Free Hanging (In-Line) | Copper | Crimp | 22 AWG | 16 AWG | Circular | 0.03 in | 0.76 mm | 20.8 mm | 0.819 in | 10 Stud | 8 mm | 0.315 in | |||||
Remington Industries RVS1.25-5-100 | Poly-Vinyl Chloride (PVC) | Insulated | Red | Tin | Free Hanging (In-Line) | Copper | Crimp | 22 AWG | 16 AWG | Circular | 0.03 in | 0.76 mm | 20.8 mm | 0.819 in | 10 Stud | 8 mm | 0.315 in | |||||
Remington Industries RVS1.25-4-10 | Poly-Vinyl Chloride (PVC) | Insulated | Red | Tin | Free Hanging (In-Line) | Copper | 6.6 mm | 0.26 in | Crimp | 8 Stud | 22 AWG | 16 AWG | Circular | 0.764 in | 19.41 mm | 0.03 in | 0.76 mm | |||||
Remington Industries RVS1.25-3.5-100 | Poly-Vinyl Chloride (PVC) | Insulated | Red | Tin | Free Hanging (In-Line) | Copper | 5.5 mm | 0.217 in | Crimp | 22 AWG | 16 AWG | Circular | 0.03 in | 0.76 mm | 17.5 mm | 0.689 in | 6 Stud | |||||
Remington Industries RVS1.25-3.5-10 | Poly-Vinyl Chloride (PVC) | Insulated | Red | Tin | Free Hanging (In-Line) | Copper | 5.5 mm | 0.217 in | Crimp | 22 AWG | 16 AWG | Circular | 0.03 in | 0.76 mm | 17.5 mm | 0.689 in | 6 Stud |
