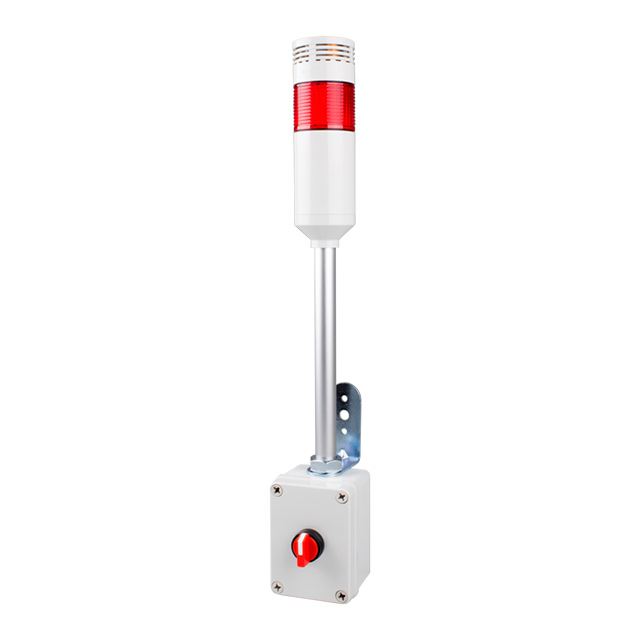

ATES-R-B

Active

Menics

COMPLETE UNIT RED LED FLASHING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATES-R-B

Active

Menics

COMPLETE UNIT RED LED FLASHING

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 155.00

Description

General part information

ATES-R Series

Stack Light Complete Unit Red LED Selector Control Cable with Connector

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ATES-R-B	ATES-R Series

Features	Selector Control	Selector Control, Adjustable Volume
Function - Audible	Continuous	Continuous
Function - Lighting	Flashing	Steady, Flashing
Light Color	Red	Red, Green, Yellow, Blue, Clear
Number of Stacks	1	1 - 5
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-15 °C	-15 °C
Termination Style	Cable with Connector	Cable with Connector
Type	Complete Unit	Complete Unit
Voltage - Supply	110 VAC/DC	110 VAC/DC

ATES-R Series

COMPLETE UNIT GR/R FLASH 2STACK

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply	Termination Style	Features	Light Color	Type	Number of Stacks	Function - Lighting	Function - Audible
Menics ATES-RG	-15 °C	40 °C	110 VAC/DC	Cable with Connector	Selector Control	Green, Red	Complete Unit	2	Flashing, Steady
Menics ATES-RY-B	-15 °C	40 °C	110 VAC/DC	Cable with Connector	Selector Control	Red, Yellow	Complete Unit	2	Flashing, Steady	Continuous
Menics ATES-R-Z	-15 °C	40 °C	110 VAC/DC	Cable with Connector	Adjustable Volume, Selector Control	Red	Complete Unit	1	Flashing	Continuous
Menics ATES-RG-Z	-15 °C	40 °C	110 VAC/DC	Cable with Connector	Adjustable Volume, Selector Control	Green, Red	Complete Unit	2	Flashing, Steady	Continuous
Menics ATES-RYGB-Z	-15 °C	40 °C	110 VAC/DC	Cable with Connector	Adjustable Volume, Selector Control	Blue, Green, Red, Yellow	Complete Unit	4	Flashing, Steady	Continuous
Menics ATES-RYGB	-15 °C	40 °C	110 VAC/DC	Cable with Connector	Selector Control	Blue, Green, Red, Yellow	Complete Unit	4	Flashing, Steady
Menics ATES-RYGBC	-15 °C	40 °C	110 VAC/DC	Cable with Connector	Selector Control	Blue, Clear, Green, Red, Yellow	Complete Unit	5	Flashing, Steady
Menics ATES-RY-Z	-15 °C	40 °C	110 VAC/DC	Cable with Connector	Adjustable Volume, Selector Control	Red, Yellow	Complete Unit	2	Flashing, Steady	Continuous
Menics ATES-RYG-B	-15 °C	40 °C	110 VAC/DC	Cable with Connector	Selector Control	Green, Red, Yellow	Complete Unit	3	Flashing, Steady	Continuous
Menics ATES-RYG	-15 °C	40 °C	110 VAC/DC	Cable with Connector	Selector Control	Green, Red, Yellow	Complete Unit	3	Flashing, Steady
