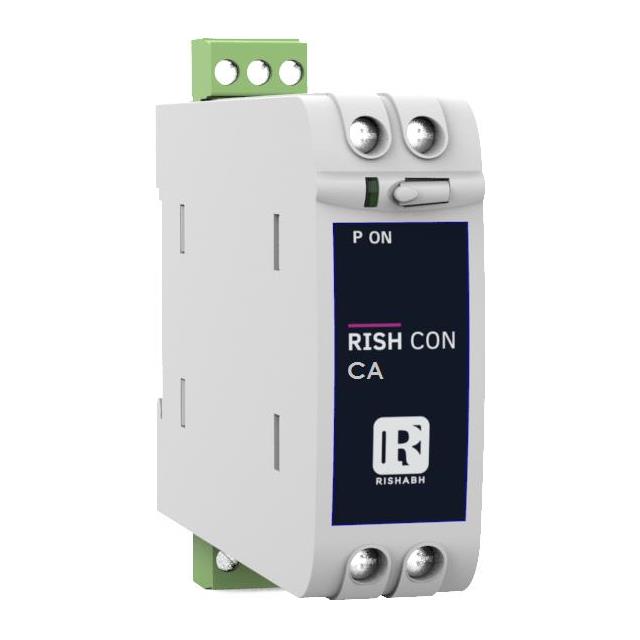

RISH CON-CV-AVG-13-F-I-04-L
ActiveRishabh Instruments
VOLTAGE TRANSDUCER 2~10 MA O/P
RISH CON-CV-AVG-13-F-I-04-L
ActiveRishabh Instruments
VOLTAGE TRANSDUCER 2~10 MA O/P
Description
General part information
RISH CON-CV-AVG-13-F-I-04-L
Voltage Transducer 0 ~ 450VAC Input 2 ~ 10mA Output 24 ~ 60VAC/DC DIN Rail
Technical Specifications
Parameters and characteristics for this part
| Specification | RISH CON-CV-AVG-13-F-I-04-L |
|---|---|
| Approval Agency | UL |
| Input Voltage (Max) | 450 VAC |
| Input Voltage (Min) | 0 mV |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 45 °C |
| Operating Temperature (Min) | 0 °C |
| Output Current (Max) | 10 mA |
| Output Current (Min) | 2 mA |
| Response Time | 250 ms |
| Termination Style | Screw Terminal |
| Type | Voltage Transducer |
| Voltage - Supply (Maximum) | 60 V |
| Voltage - Supply (Minimum) | 24 VAC |
