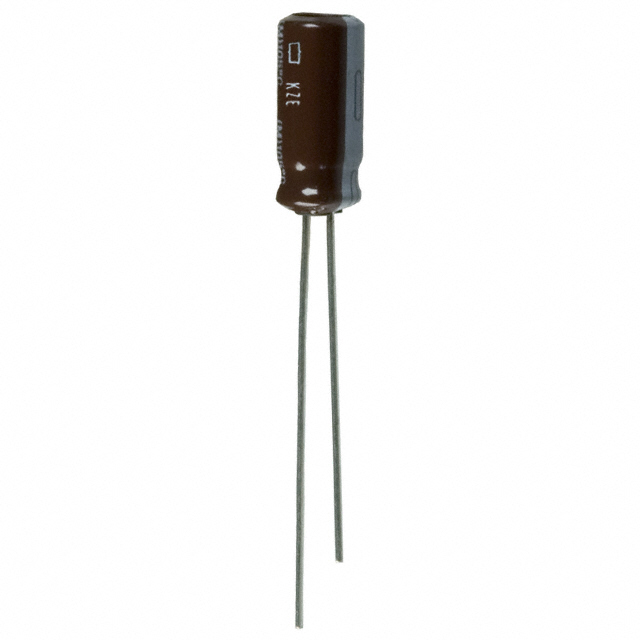

EKZE100ETD101ME11D

Active

Chemi-Con

CAP ALUM 100UF 20% 10V RADIAL TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EKZE100ETD101ME11D

Active

Chemi-Con

CAP ALUM 100UF 20% 10V RADIAL TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EKZE100ETD101ME11D	EKZE100E Series

Applications	General Purpose	General Purpose
Capacitance	100 µF	3.3 - 3900 µF
Height - Seated (Max)	-	14 mm
Height - Seated (Max)	-	0.512 - 1.043 in
Height - Seated (Max)	-	13 - 26.5 mm
Height - Seated (Max) [Max]	0.492 in	0.492 - 1.24 in
Height - Seated (Max) [Max]	12.5 mm	12.5 - 31.5 mm
Impedance	300 mOhms	16 - 300 mOhms
Lead Spacing	2 mm	2 - 7.5 mm
Lead Spacing	0.079 in	0.079 - 0.295 in
Lifetime @ Temp.	2000 Hrs	2000 - 5000 Hrs
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial, Can	Radial, Can
Polarization	Polar	Polar
Ripple Current @ High Frequency	250 mA	1.03 - 250 A
Ripple Current @ Low Frequency	100 mA	1.77 - 858 A
Size / Dimension [diameter]	5 mm	5 - 16 mm
Size / Dimension [diameter]	0.197 "	0.197 - 0.63 in
Tolerance	20 %	20 %
Voltage - Rated	10 V	10 V

EKZE100E Series

CAP ALUM 3900UF 20% 10V RADIAL

Part	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Tolerance	Impedance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Lifetime @ Temp.	Ripple Current @ Low Frequency	Applications	Polarization	Mounting Type	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Chemi-Con EKZE100ELL392MK30S	5 mm	0.197 in	-40 °C	105 ░C	10 V	3.29 A	0.492 in	12.5 mm	3900 µF	20 %	16 mOhms	31.5 mm	1.24 in	Radial, Can	5000 Hrs	2.4675 A	General Purpose	Polar	Through Hole
Chemi-Con EKZE100ELL102MH20D	3.5 mm	0.138 in	-40 °C	105 ░C	10 V	1.25 A	0.315 "	8 mm	1000 µF	20 %	41 mOhms	21.5 mm	0.846 in	Radial, Can	3000 Hrs	750 mA	General Purpose	Polar	Through Hole
Chemi-Con EKZE100ETD102MJ16S	5 mm	0.197 in	-40 °C	105 ░C	10 V	1.43 A	0.394 in	10 mm	1000 µF	20 %	38 mOhms	17.5 mm	0.689 in	Radial, Can	4000 Hrs	858 mA	General Purpose	Polar	Through Hole
Chemi-Con EKZE100ELL681MJC5S	5 mm	0.197 in	-40 °C	105 ░C	10 V	1.03 A	0.394 in	10 mm	680 µF	20 %	53 mOhms		0.551 "	Radial, Can	4000 Hrs	618 mA	General Purpose	Polar	Through Hole	14 mm
Chemi-Con EKZE100ETC102MH20D	3.5 mm	0.138 in	-40 °C	105 ░C	10 V	1.25 A	0.315 "	8 mm	1000 µF	20 %	41 mOhms	21.5 mm	0.846 in	Radial, Can	3000 Hrs	750 mA	General Purpose	Polar	Through Hole
Chemi-Con EKZE100EC3562ML25S	7.5 mm	0.295 in	-40 °C	105 ░C	10 V	3.46 A	0.63 in	16 mm	5.6 mF	20 %	16 mOhms			Radial, Can	5000 Hrs	2.941 A	General Purpose	Polar	Through Hole		1.043 in	26.5 mm
Chemi-Con EKZE100ELL222MK20S	5 mm	0.197 in	-40 °C	105 ░C	10 V	2.36 A	0.492 in	12.5 mm	2200 µF	20 %	21 mOhms	21.5 mm	0.846 in	Radial, Can	5000 Hrs	1.77 A	General Purpose	Polar	Through Hole
Chemi-Con EKZE100ETC471MHB5D	3.5 mm	0.138 in	-40 °C	105 ░C	10 V		0.315 "	8 mm	470 µF	20 %	72 mOhms			Radial, Can	3000 Hrs	380 mA	General Purpose	Polar	Through Hole		0.512 "	13 mm
Chemi-Con EKZE100EMC332MK25S	5 mm	0.197 in	-40 °C	105 ░C	10 V	2.77 A	0.492 in	12.5 mm	3.3 mF	20 %	18 mOhms			Radial, Can	5000 Hrs	2.0775 A	General Purpose	Polar	Through Hole		1.043 in	26.5 mm
Chemi-Con EKZE100ETD101ME11D	2 mm	0.079 in	-40 °C	105 ░C	10 V	250 mA	0.197 "	5 mm	100 µF	20 %	300 mOhms	12.5 mm	0.492 in	Radial, Can	2000 Hrs	100 mA	General Purpose	Polar	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.45
		10	$ 0.30
		50	$ 0.22
		100	$ 0.18
		500	$ 0.14
		1000	$ 0.12
	Tape & Reel (TR)	2000	$ 0.11
		4000	$ 0.11
		10000	$ 0.10
		14000	$ 0.10
		50000	$ 0.09
		100000	$ 0.08

Description

General part information

EKZE100E Series

100 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
