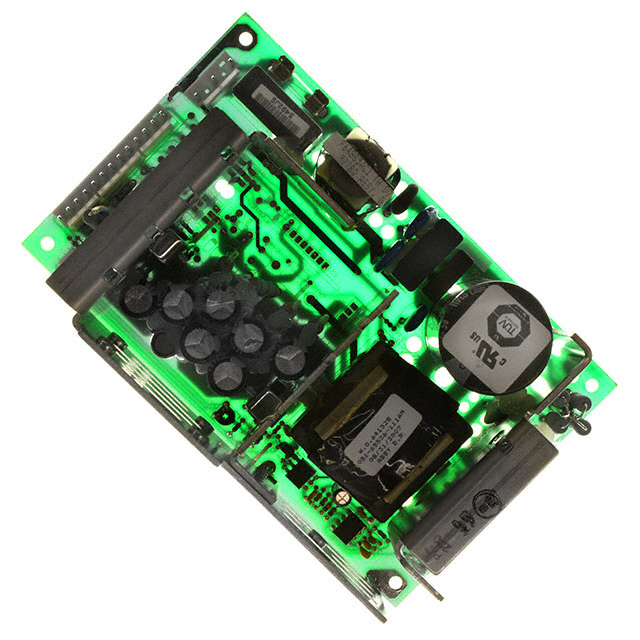

MAP140-1012
ObsoleteBel Fuse Inc.
AC/DC CONVERTER 12V 80W
MAP140-1012
ObsoleteBel Fuse Inc.
AC/DC CONVERTER 12V 80W
Description
General part information
MAP140-1012
Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | MAP140-1012 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cCSAus, CE, CB |
| Current - Output 1 | 9.2 A |
| Efficiency | 80 % |
| Features | Universal Input, Adjustable Output, Remote Sense |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 80 W, 140 W |
| Size / Dimension Height | 1.8 in |
| Size / Dimension Length | 7 in |
| Size / Dimension Width | 4.3 in |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Isolation | 2600 Vrms |
| Voltage - Output 1 | 12 V |
