73L0R30J
ActiveCTS Resistor Products
RES 0.3 OHM 5% 1/16W 0201
73L0R30J
ActiveCTS Resistor Products
RES 0.3 OHM 5% 1/16W 0201
Description
General part information
73L0R30J

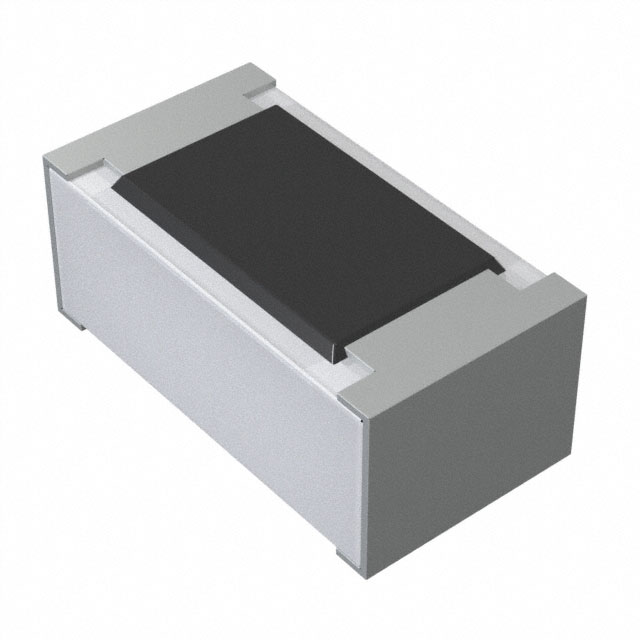

300 mOhms ±5% 0.063W, 1/16W Chip Resistor 0201 (0603 Metric) Current Sense Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | 73L0R30J |
|---|---|
| Composition | Thick Film |
| Features | Current Sense |
| Height - Seated (Max) | 0.01 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0201 (0603 Metric) |
| Package Name | 0201 |
| Power (Watts) | 0.063 W |
| Power (Watts) Options | 1/16W |
| Resistance | 0.3 Ohms |
| Size / Dimension Length | 0.024 in |
| Size / Dimension Width | 0.012 in |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 5 % |
