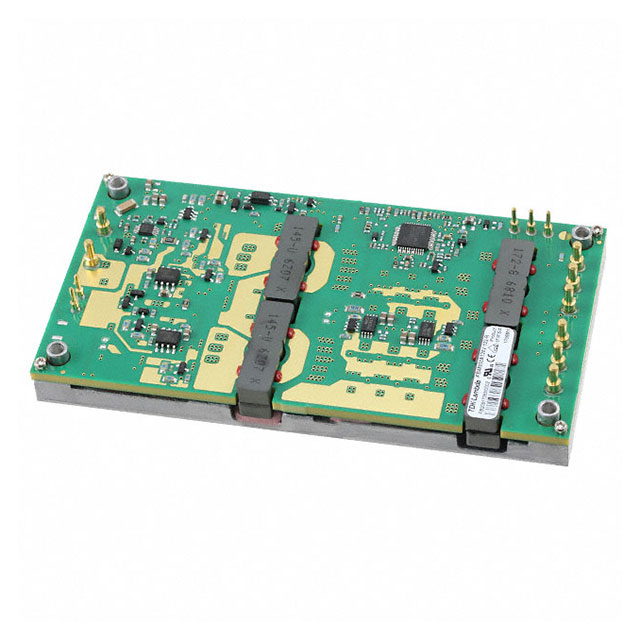

IFB48058A096V-122-R
ObsoleteTDK Corporation
DC DC CONVERTER 9.6V 557W
IFB48058A096V-122-R
ObsoleteTDK Corporation
DC DC CONVERTER 9.6V 557W
Description
General part information
IFB48058A096V-122-R
Isolated Module DC DC Converter 1 Output 9.6V 58A 36V - 75V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | IFB48058A096V-122-R |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 58 A |
| Efficiency | 93 % |
| Features | OCP, OVP, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Full Brick |
| Package Name | Full Brick |
| Power (Watts) | 557 W |
| Size / Dimension Height | 0.52 in |
| Size / Dimension Length | 4.6 in |
| Size / Dimension Width | 2.4 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 75 V |
| Voltage - Input (Min) | 36 V |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output 1 | 9.6 V |
