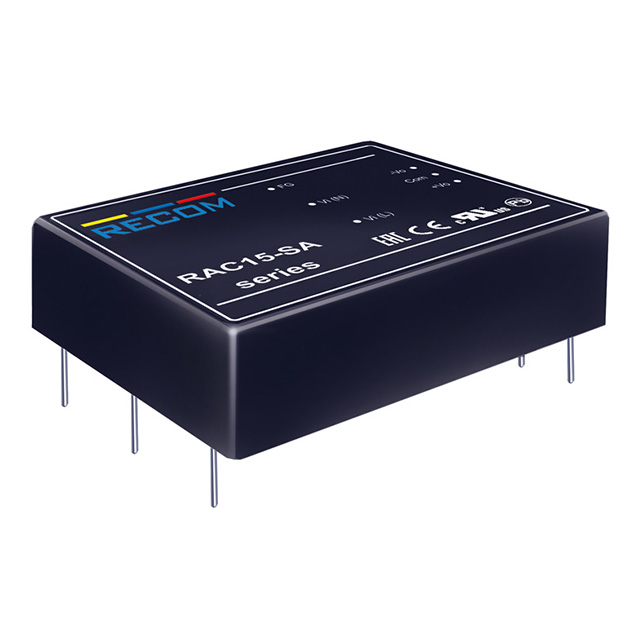

RAC15-12DA-E
ObsoleteRecom Power
AC/DC CONVERTER +/-12V 15W
RAC15-12DA-E
ObsoleteRecom Power
AC/DC CONVERTER +/-12V 15W
Description
General part information
RAC15-12DA-E
Enclosed AC DC Converters 2 Output 12V 650mA, 650mA 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | RAC15-12DA-E |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus, CE |
| Current - Output (Max) Options | 650mA |
| Efficiency | 79 % |
| Features | SCP |
| Line Regulation | 0.5 % |
| Load Regulation (Percent) | 3 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 6 Leads |
| Package Name | 8-DIP Module |
| Power (Watts) | 15 W |
| Size / Dimension Height | 0.88 in |
| Size / Dimension Length | 2.91 in |
| Size / Dimension Width | 2.13 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output 1 | 12 V |
| Weight | 0.251 lb |
