0304 08
ActiveLumberg Inc

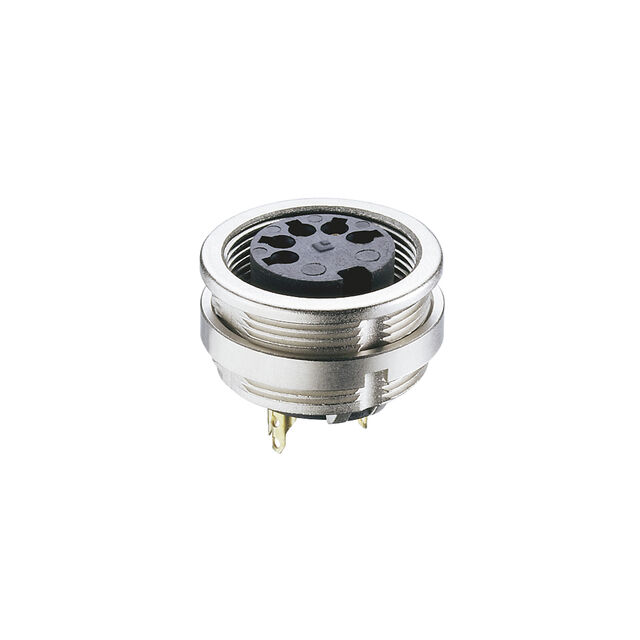

M16 CHASSIS SOCKET FRONTMOUNT 8P
0304 08
ActiveLumberg Inc
M16 CHASSIS SOCKET FRONTMOUNT 8P
Description
General part information
0304 08
8 Position Circular Connector Plug, Female Sockets Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 0304 08 |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver, Gold |
| Fastening Type | Threaded |
| Ingress Protection | IP68 |
| Material Flammability Rating | UL94 |
| Mounting Feature | Front Side Nut |
| Mounting Type | Chassis Mount |
| Number of Positions | 8 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M16 |
| Termination | Solder |
