165414
ActiveTE Connectivity AMP Connectors
CONN RING TONG 11.5-10AWG #6
165414
ActiveTE Connectivity AMP Connectors
CONN RING TONG 11.5-10AWG #6
Description
General part information
165414

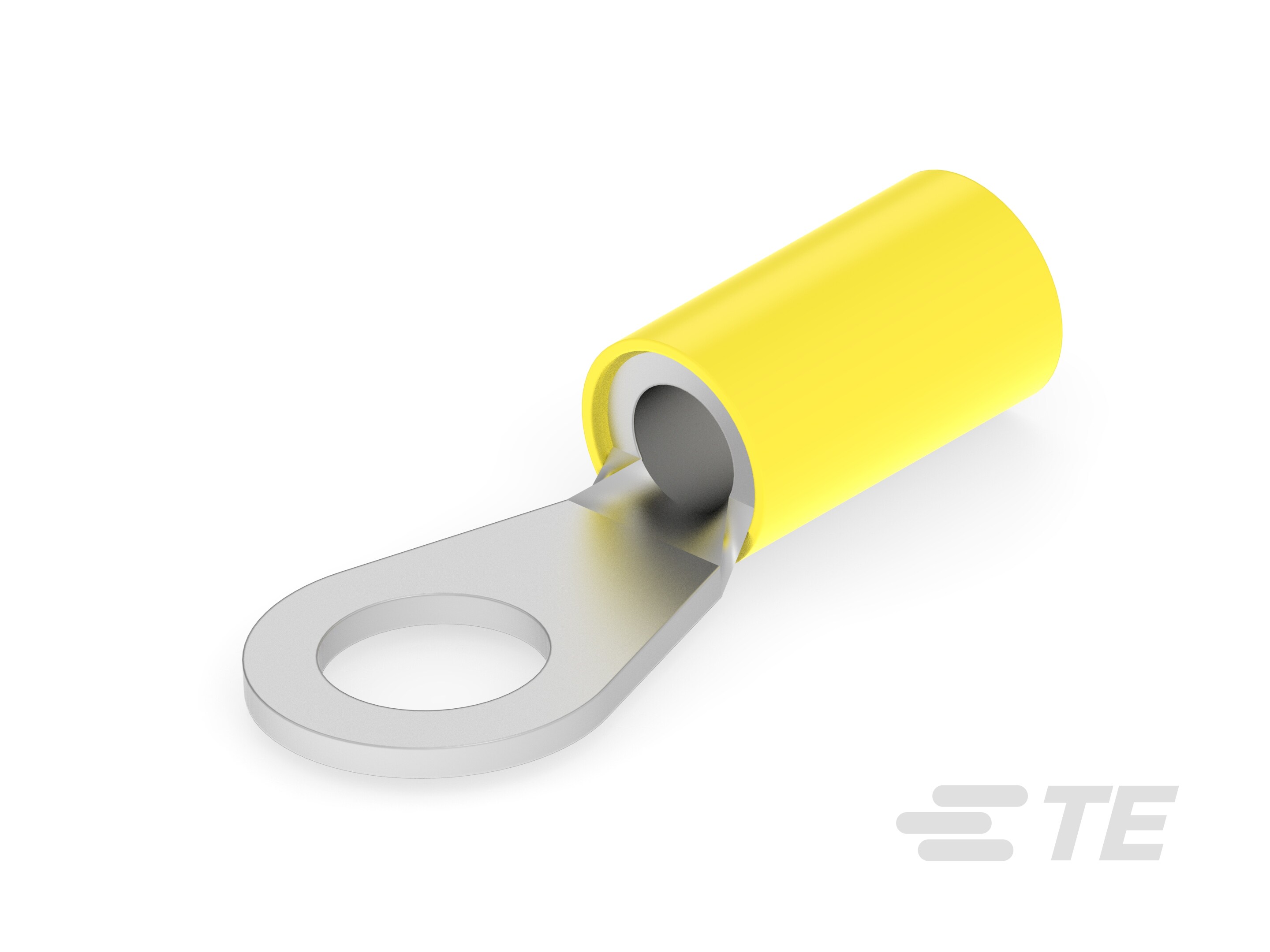

Closed Ring Tongue Terminal, 11 – 10 AWG, #6 Stud, 6.5 mm [.256 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PLASTI-GRIP
Technical Specifications
Parameters and characteristics for this part
| Specification | 165414 |
|---|---|
| Color | Yellow |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Insulated |
| Length - Overall | 1.11 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 6 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.039 in |
| Width - Outer Edges | 0.433 in |
| Wire Gauge (AWG) (Max) | 12 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
