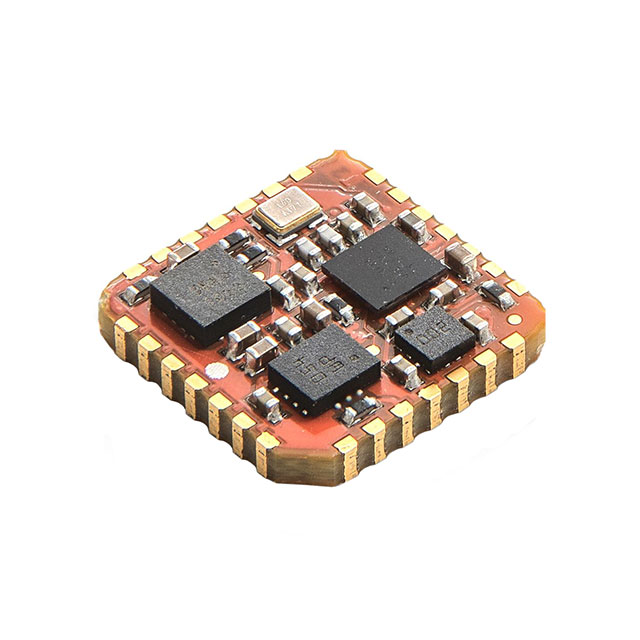

MTI-3-T

Unknown

Xsens Technologies BV

IMU ACCEL/GYRO/MAG I2C/SPI

Search across all available documentation for this part.

Unknown

Xsens Technologies BV

IMU ACCEL/GYRO/MAG I2C/SPI

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MTI-3-T	MTI-3 Series

Embedded	-	MCU, 32-Bit
Embedded	-	True
Interface	-	Serial
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	UART, SPI, I2C	UART, SPI, I2C
Package / Case	28-SMD Module	28-SMD Module
Sensor Type	Accelerometer, Gyroscope, 9 Axis, Magnetometer	Accelerometer, Gyroscope, 9 Axis, Magnetometer
Supplied Contents	-	Cable(s), Board(s)
Supplier Device Package	Module	Module
Utilized IC / Part	-	MTi 1-Series
Voltage - Supply	-	2.16 V
Voltage - Supply	-	3.45 V

IMU ACCEL/GYRO/MAG I2C/SPI

Part	Sensor Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Mounting Type	Output Type	Utilized IC / Part	Supplied Contents	Embedded	Voltage - Supply [Min]	Voltage - Supply [Max]	Interface
Xsens Technologies BV MTI-3-T	9 Axis, Accelerometer, Gyroscope, Magnetometer	28-SMD Module	85 °C	-40 °C	Module	Surface Mount	I2C, SPI, UART
Xsens Technologies BV MTI-3-DK	Accelerometer, Gyroscope, Magnetometer							MTi 1-Series	Board(s), Cable(s)	32-Bit, MCU	2.16 V	3.45 V	Serial
Xsens Technologies BV MTI-3-C	9 Axis, Accelerometer, Gyroscope, Magnetometer	28-SMD Module	85 °C	-40 °C	Module	Surface Mount	I2C, SPI, UART

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Accelerometer, Gyroscope, Magnetometer, 9 Axis Sensor I2C, SPI, UART Output

Technical documentation and resources
