B82476A1334M000
ActiveEPCOS - TDK Electronics
FIXED IND 330UH 600MA 810MOHM SM
B82476A1334M000
ActiveEPCOS - TDK Electronics
FIXED IND 330UH 600MA 810MOHM SM
Description
General part information
B82476A1334M000

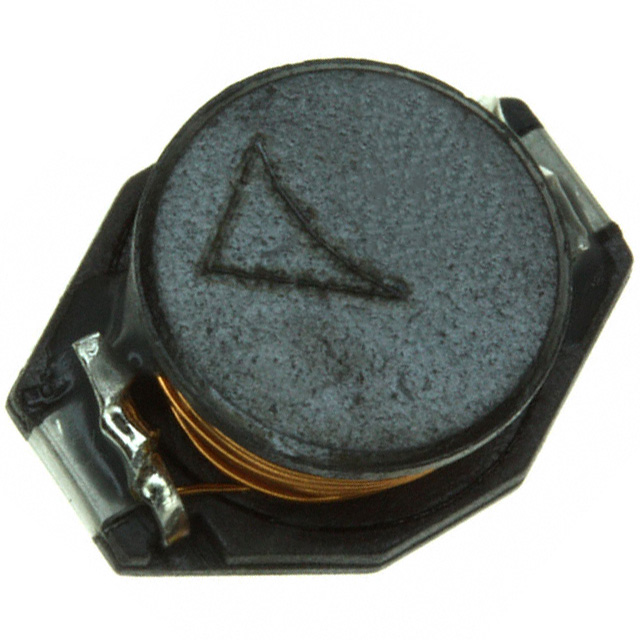

330 µH Unshielded Drum Core, Wirewound Inductor 600 mA 810mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | B82476A1334M000 |
|---|---|
| Current - Saturation (Isat) | 0.6 mA |
| Current Rating | 600 mA |
| DC Resistance (DCR) (Max) | 810 mOhm |
| Height - Seated (Max) | 0.2 in |
| Inductance | 330 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.51 in |
| Size / Dimension Width | 0.37 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
