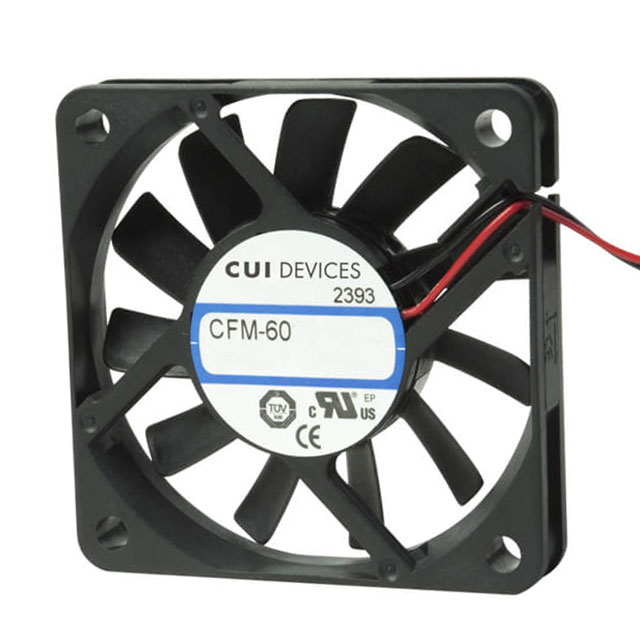

Specification	CFM-6015-13-22

Air Flow	27.5 CFM
Approval Agency	cURus, TUV, CE
Bearing Type	Ball
Current Rating	0.17 A
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach), PWM Control
Lifetime	70000 Hrs
Material - Blade	PBT, Polybutylene Terephthalate
Material - Frame	Polybutylene Terephthalate (PBT)
Noise	39 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	14 °F
Power (Watts)	2.64 W
RPM	5100 RPM
Size / Dimension Height	60 mm
Size / Dimension Length	60 mm
Size / Dimension Shape	Square
Static Pressure	0.23 in H2O
Termination	4 Wire Leads
Termination Leads Count	4 leads
Termination Type	Wire Leads
Voltage - Rated	12 VAC
Voltage Range (Max)	13.8 VDC
Voltage Range (Min)	6 VDC
Weight	0.089 lb
Width	15.4 mm

CFM-6015 Series

Part	Width	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Features	Power (Watts)	Termination Leads Count	Termination Type	Termination	Bearing Type	Lifetime	Voltage Range (Min)	Voltage Range (Max)	Weight	RPM	Voltage - Rated	Material - Frame	Material - Blade	Air Flow	Noise	Approval Agency	Fan Type	Current Rating	Static Pressure	Operating Temperature (Max)	Operating Temperature (Min)
Same Sky (Formerly CUI Devices) CFM-6015V-139-292-20	15 mm	60 mm	Square	60 mm	Auto Restart Speed Sensor (Tach)	950 mW	3	Wire Leads	3 Wire Leads	omniCOOL™ Magnetic Sleeve	70000 Hrs	4.5 VDC	13.8 VDC	0.078 lb	3900 RPM	12 VAC	Polybutylene Terephthalate (PBT)	PBT Polybutylene Terephthalate	22.8 CFM	29.2 dB	CE cURus TUV	Tubeaxial	0.079 A	0.14 in H2O	158 °F	14 °F
Same Sky (Formerly CUI Devices) CFM-6015V-247-342-11	15 mm	60 mm	Square	60 mm	Auto Restart Locked Rotor Sensor	2.09 W	3	Wire Leads	3 Wire Leads	omniCOOL™ Magnetic Sleeve				0.078 lb	4700 RPM	24 VAC			26.4 CFM	34.2 dB	CE cURus TUV	Tubeaxial		0.18 in H2O	158 °F	14 °F
Same Sky (Formerly CUI Devices) CFM-6015V-130-213-20	15 mm	60 mm	Square	60 mm	Auto Restart Speed Sensor (Tach)	700 mW	3	Wire Leads	3 Wire Leads	omniCOOL™ Magnetic Sleeve				0.078 lb	3000 RPM	12 VAC			17.6 CFM	21.3 dB	CE cURus TUV	Tubeaxial		0.12 in H2O	158 °F	14 °F
Same Sky (Formerly CUI Devices) CFM-6015V-154-362-11	15 mm	60 mm	Square	60 mm	Auto Restart Locked Rotor Sensor	2.56 W	3	Wire Leads	3 Wire Leads	omniCOOL™ Magnetic Sleeve	70000 Hrs	4.5 VDC	13.8 VDC	0.078 lb	5400 RPM	12 VAC	Polybutylene Terephthalate (PBT)	PBT Polybutylene Terephthalate	30.4 CFM	36.2 dB	CE cURus TUV	Tubeaxial	0.213 A	0.22 in H2O	158 °F	14 °F
Same Sky (Formerly CUI Devices) CFM-6015V-154-362-11	15 mm	60 mm	Square	60 mm	Auto Restart Locked Rotor Sensor	2.56 W	3	Wire Leads	3 Wire Leads	omniCOOL™ Magnetic Sleeve				0.078 lb	5400 RPM	12 VAC			30.4 CFM	36.2 dB	CE cURus TUV	Tubeaxial		0.22 in H2O	158 °F	14 °F
Same Sky (Formerly CUI Devices) CFM-6015V-147-342-11	15 mm	60 mm	Square	60 mm	Auto Restart Locked Rotor Sensor	1.77 W	3	Wire Leads	3 Wire Leads	omniCOOL™ Magnetic Sleeve	70000 Hrs	4.5 VDC	13.8 VDC	0.078 lb	4700 RPM	12 VAC	Polybutylene Terephthalate (PBT)	PBT Polybutylene Terephthalate	26.4 CFM	34.2 dB	CE cURus TUV	Tubeaxial	0.147 A	0.18 in H2O	158 °F	14 °F
Same Sky (Formerly CUI Devices) CFM-6015V-139-292-20	15 mm	60 mm	Square	60 mm	Auto Restart Speed Sensor (Tach)	950 mW	3	Wire Leads	3 Wire Leads	omniCOOL™ Magnetic Sleeve				0.078 lb	3900 RPM	12 VAC			22.8 CFM	29.2 dB	CE cURus TUV	Tubeaxial		0.14 in H2O	158 °F	14 °F
Same Sky (Formerly CUI Devices) CFM-6015V-130-213-20	15 mm	60 mm	Square	60 mm	Auto Restart Speed Sensor (Tach)	700 mW	3	Wire Leads	3 Wire Leads	omniCOOL™ Magnetic Sleeve	70000 Hrs	4.5 VDC	13.8 VDC	0.078 lb	3000 RPM	12 VAC	Polybutylene Terephthalate (PBT)	PBT Polybutylene Terephthalate	17.6 CFM	21.3 dB	CE cURus TUV	Tubeaxial	58 mA	0.12 in H2O	158 °F	14 °F
Same Sky (Formerly CUI Devices) CFM-6015V-130-213	15 mm	60 mm	Square	60 mm	Auto Restart	700 mW	2 leads	Wire Leads	2 Wire Leads	omniCOOL™ Magnetic Sleeve	70000 Hrs	4.5 VDC	13.8 VDC	0.078 lb	3000 RPM	12 VAC	Polybutylene Terephthalate (PBT)	PBT Polybutylene Terephthalate	17.6 CFM	21.3 dB	CE cURus TUV	Tubeaxial	58 mA	0.12 in H2O	158 °F	14 °F
Same Sky (Formerly CUI Devices) CFM-6015V-122-145	15 mm	60 mm	Square	60 mm	Auto Restart	350 mW	2 leads	Wire Leads	2 Wire Leads	omniCOOL™ Magnetic Sleeve	70000 Hrs	4.5 VDC	13.8 VDC	0.078 lb	2200 RPM	12 VAC	Polybutylene Terephthalate (PBT)	PBT Polybutylene Terephthalate	12.7 CFM	14.5 dB	CE cURus TUV	Tubeaxial	29 mA	0.04 in H2O	158 °F	14 °F
