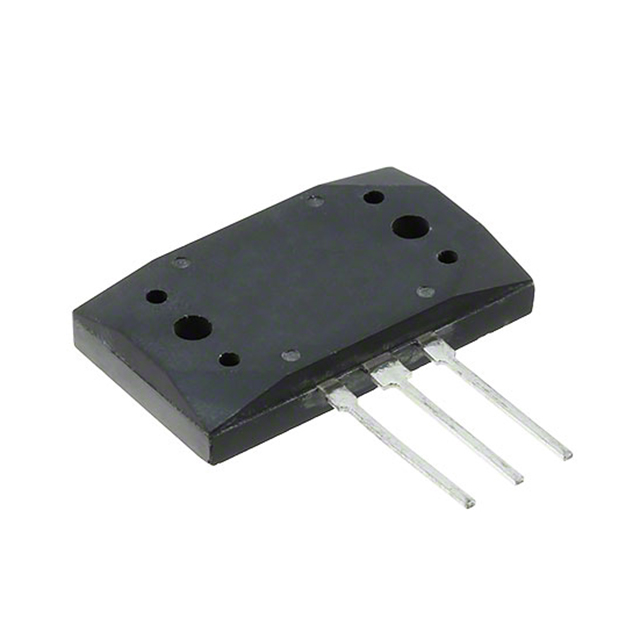

2SA1295
ObsoleteSanken Electric USA Inc.
TRANS PNP 230V 17A MT-200
2SA1295
ObsoleteSanken Electric USA Inc.
TRANS PNP 230V 17A MT-200
Description
General part information
2SA1295
Bipolar (BJT) Transistor PNP 230 V 17 A 35MHz 200 W Through Hole MT-200
Technical Specifications
Parameters and characteristics for this part
| Specification | 2SA1295 |
|---|---|
| Current - Collector (Ic) (Max) | 17 A |
| Current - Collector Cutoff (Max) | 100 µA |
| DC Current Gain (hFE) (Min) | 50 |
| Frequency - Transition | 35 MHz |
| Mounting Type | Through Hole |
| Operating Temperature | 150 °C |
| Package / Case | 3-ESIP |
| Package Name | MT-200 |
| Power - Max | 200 W |
| Transistor Type | PNP |
| Vce Saturation (Max) | 2 V |
| Voltage - Collector Emitter Breakdown (Max) | 230 V |
