Description
General part information
BGS 12A TR E6327
RF Switch IC General Purpose SPDT 3 GHz 50Ohm FWLP-6
Technical Specifications
Parameters and characteristics for this part
| Specification | BGS 12A TR E6327 |
|---|---|
| Circuit | SPDT |
| Features | DC Blocked, Single Line Control |
| Frequency Range (Max) | 3 GHz |
| Frequency Range (Min) | 100 MHz |
| Impedance | 50 Ohm |
| Insertion Loss | 0.6 dB |
| Isolation | 27 dB |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |

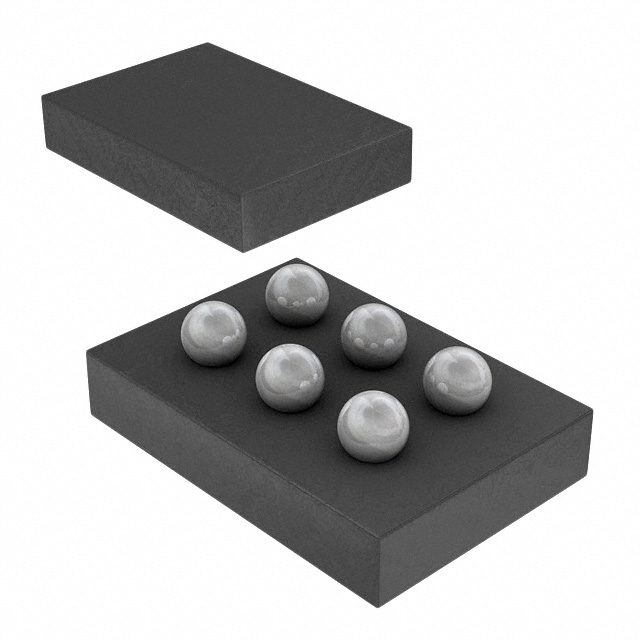

| Package / Case | WLCSP, 6-XFBGA |
| Package Name | FWLP-6 |
| RF Type | General Purpose |
| Test Frequency | 2 GHz |
| Topology | Reflective |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 2.4 V |
