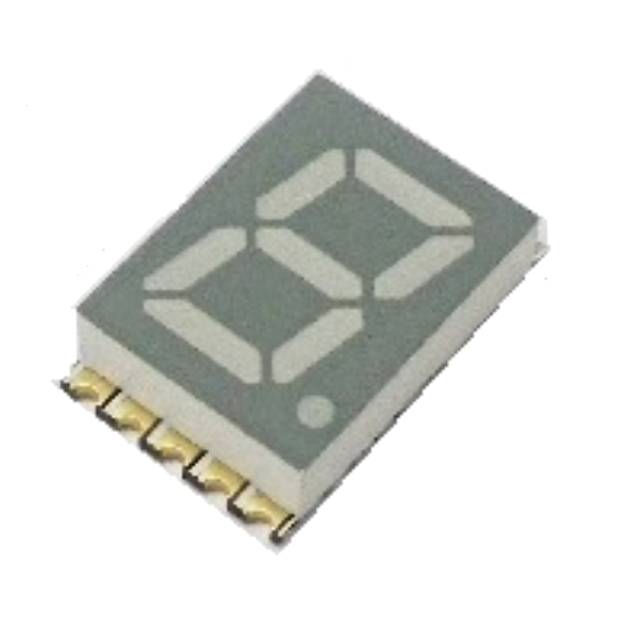

SMA281LY G/W

Active

American Opto Plus LED

0.28" SGL SMD DISPLAY - YELLOW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SMA281LY G/W

Active

American Opto Plus LED

0.28" SGL SMD DISPLAY - YELLOW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SMA281LY G/W	SMA281 Series

Color	Yellow	Yellow-Green, Blue, Red, Yellow
Common Pin	Common Anode	Common Anode
Current - Test	20 mA	20 mA
Digit/Alpha Size	7 mm	7 mm
Digit/Alpha Size	0.28 in	0.28 in
Display Type	7-Segment	7-Segment
Millicandela Rating	10 mcd	7 - 20 mcd
Number of Characters [custom]	1	1
Package / Case	10-SMD, No Lead	10-SMD, No Lead
Power Dissipation (Max) [Max]	70 mW	70 - 120 mW
Size / Dimension [x]	10 mm	10 mm
Size / Dimension [x]	0.394 "	0.394 "
Size / Dimension [y]	0.295 in	0.295 in
Size / Dimension [y]	7.5 mm	7.5 mm
Size / Dimension [z]	0.159 in	0.159 in
Size / Dimension [z]	4.05 mm	4.05 mm
Voltage - Forward (Vf) (Typ)	2 V	2 - 3.2 V
Wavelength - Peak	593 nm	573 - 632 nm

SMA281 Series

0.28" SGL SMD DISPLAY - Y-GREEN

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Number of Characters [custom]	Package / Case	Digit/Alpha Size	Digit/Alpha Size	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Power Dissipation (Max) [Max]	Current - Test	Display Type	Color	Common Pin
American Opto Plus LED SMA281YG G/W	10 mm	0.394 "	0.295 in	0.159 in	7.5 mm	4.05 mm	1	10-SMD, No Lead	7 mm	0.28 in	573 nm	2.1 V	7 mcd	70 mW	20 mA	7-Segment	Yellow-Green	Common Anode
American Opto Plus LED SMA281LB G/W	10 mm	0.394 "	0.295 in	0.159 in	7.5 mm	4.05 mm	1	10-SMD, No Lead	7 mm	0.28 in		3.2 V	20 mcd	120 mW	20 mA	7-Segment	Blue	Common Anode
American Opto Plus LED SMA281LE G/W	10 mm	0.394 "	0.295 in	0.159 in	7.5 mm	4.05 mm	1	10-SMD, No Lead	7 mm	0.28 in	632 nm	2 V	10 mcd	70 mW	20 mA	7-Segment	Red	Common Anode
American Opto Plus LED SMA281LY G/W	10 mm	0.394 "	0.295 in	0.159 in	7.5 mm	4.05 mm	1	10-SMD, No Lead	7 mm	0.28 in	593 nm	2 V	10 mcd	70 mW	20 mA	7-Segment	Yellow	Common Anode

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1	$ 1.84
		10	$ 1.38
		100	$ 1.15
		500	$ 0.81
		1000	$ 0.74

Description

General part information

SMA281 Series

Display Modules - LED Character and Numeric Yellow 7-Segment 1 Character Common Anode 2V 20mA 0.394" H x 0.295" W x 0.159" D (10.00mm x 7.50mm x 4.05mm) 10-SMD, No Lead
