Description
General part information

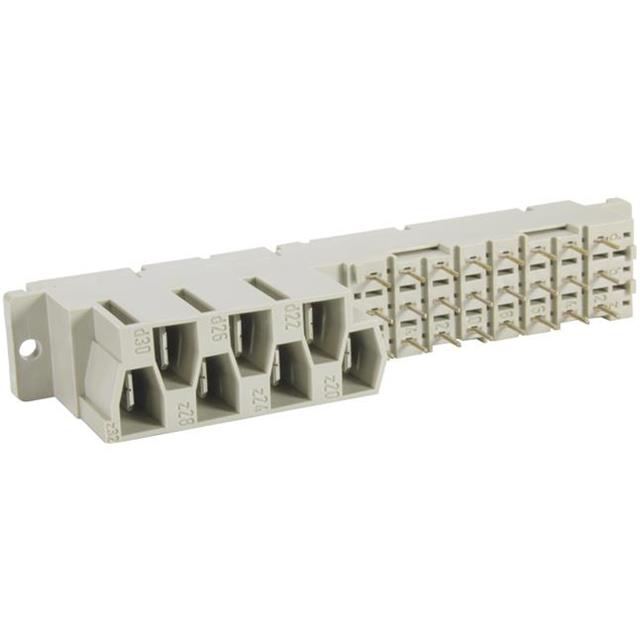

09062316822
31 (24 + 7 Power) Position Din Connector Header, Male Pins and Blades Gold or Gold-Palladium Panel Mount, Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 09062316822 |
|---|---|
| Connector Type | Blades, Male Pins, Header |
| Contact Finish | Gold-Palladium, Gold |
| Level, Class | 2 |
| Material - Insulation | Glass Filled, PBT, Polybutylene Terephthalate |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Through Hole |
| Number of Positions (Normal) | 24 |
| Number of Positions (Power) | 7 |
| Number of Positions (Total) | 31 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Style | MH |
| Termination | Quick Connect, Solder |
