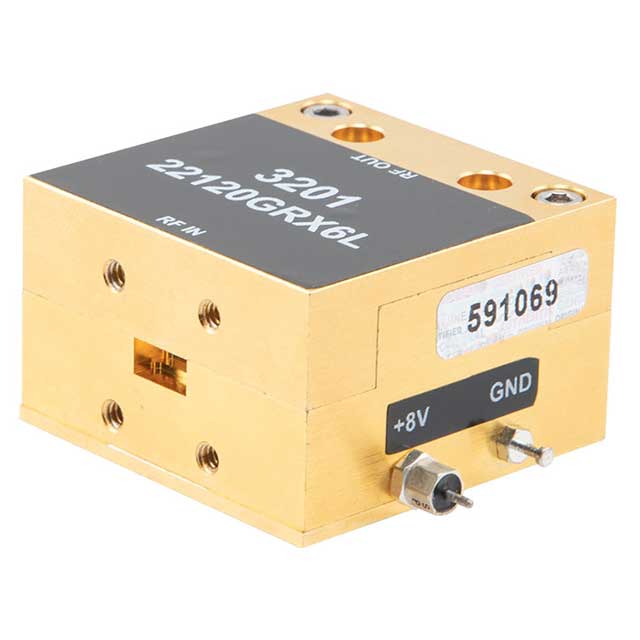

PEWGA3201
ActivePasternack
IC RF AMP GPS 26.5GHZ-40GHZ
PEWGA3201
ActivePasternack
IC RF AMP GPS 26.5GHZ-40GHZ
Description
General part information
PEWGA3201
RF Amplifier IC General Purpose 26.5GHz ~ 40GHz
Technical Specifications
Parameters and characteristics for this part
| Specification | PEWGA3201 |
|---|---|
| Current - Supply | 280 mA |
| Frequency (Max) | 40 GHz |
| Frequency (Min) | 26.5 GHz |
| Gain | 33 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 2.8 dB |
| P1dB | 18 dBm |
| Package / Case | Module |
| RF Type | General Purpose |
| Test Frequency (Maximum) | 40 GHz |
| Test Frequency (Minimum) | 26.5 GHz |
| Voltage - Supply (Maximum) | 12 V |
| Voltage - Supply (Minimum) | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
