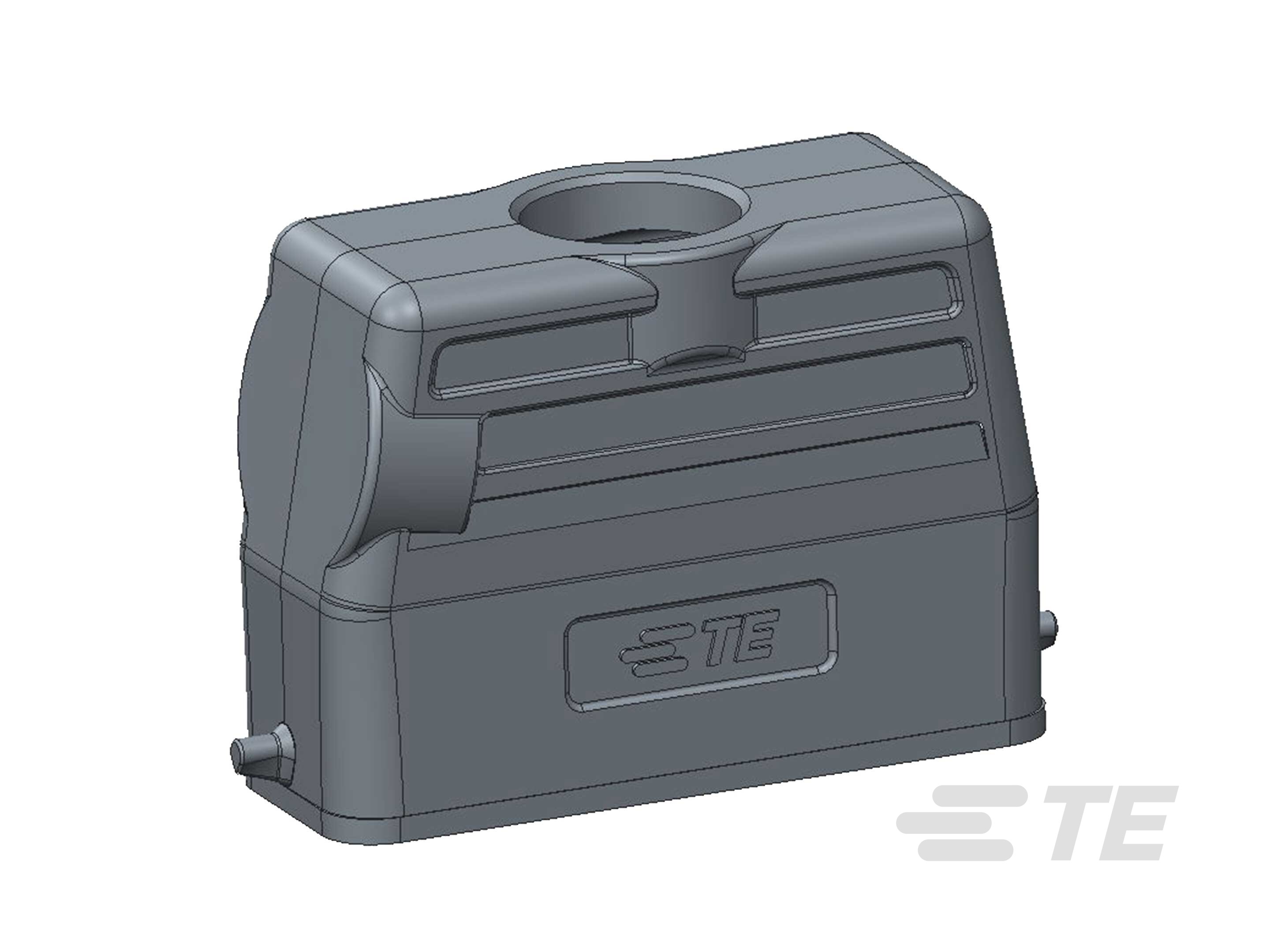

Specification	T1329160125-000

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Size	H16A
Size / Dimension Height	2.291 in
Size / Dimension Length	3.118 in
Size / Dimension Width	1.169 in
Style	Top Entry
Thread Size	M25

HDC IP65 Series

...

Part	Operating Temperature (Max)	Operating Temperature (Min)	Housing Material	Lock Location	Housing Finish	Connector Type	Housing Color	Style	Ingress Protection IP Rating	Ingress Protection Description	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Size	Thread Size	Features
TE Connectivity AMP Connectors T1230160221-000	125 °C	-40 °C	Aluminum Alloy Die Cast	Locking Clip (2) on Base Bottom	Powder Coated	Hood	Gray	Dual Side Entry	IP65	Dust Tight Water Resistant	2.992 in	1.693 in	3.681 in	H16B	PG21
TE Connectivity AMP Connectors T1339160125-000	125 °C	-40 °C	Aluminum Alloy Die Cast	Locking Clip (1) on Base Bottom	Powder Coated	Hood	Gray	Side Entry	IP65	Dust Tight Water Resistant	2.843 in	1.169 in	3.118 in	H16A	M25
TE Connectivity AMP Connectors T1329160120-000	125 °C	-40 °C	Aluminum Alloy Die Cast	Locking Clip (1) on Base Bottom	Powder Coated	Hood	Gray	Top Entry	IP65	Dust Tight Water Resistant	2.291 in	1.169 in	3.118 in	H16A	M20
TE Connectivity AMP Connectors T1230243232-000	125 °C	-40 °C	Aluminum Alloy Die Cast	Locking Clip (2) on Base Bottom	Powder Coated	Hood	Gray	Side Top Entry	IP65	Dust Tight Water Resistant	2.992 in	1.693 in	4.724 in	H24B	M32
TE Connectivity AMP Connectors T1710241125-000	125 °C	-40 °C	Aluminum Alloy Die Cast	Locking Clip (2) on Hood Top	Powder Coated	Hood - Coupling	Gray	Bottom Entry Top or Bottom Entry	IP65	Dust Tight Water Resistant	2.461 in	1.732 in	4.795 in	H24B	M25	Cable Cable to Cable
TE Connectivity AMP Connectors T1280162125-000	125 °C	-40 °C	Aluminum Alloy Die Cast	Locking Clip (2) on Hood	Powder Coated	Hood	Gray	Top Entry	IP65	Dust Tight Water Resistant	2.992 in	1.693 in	3.681 in	H16B	M25
TE Connectivity AMP Connectors T13X9100120-000	125 °C	-40 °C	Aluminum Alloy Die Cast	Locking Clip (1) on Base Bottom	Powder Coated	Hood	Gray	Side Entry	IP65	Dust Tight Water Resistant	2.291 in	1.169 in	2.488 in	H10A	M20
TE Connectivity AMP Connectors T1620480129-000	125 °C	-40 °C	Aluminum Alloy Die Cast	Locking Clip (1) on Base Bottom	Powder Coated	Base - Box Mount	Gray	Side Entry	IP65	Dust Tight Water Resistant	3.921 in	4.74 in	5.327 in	H48B	PG29	Cover
TE Connectivity AMP Connectors T1310060121-000	125 °C	-40 °C	Aluminum Alloy Die Cast	Locking Clip (1) on Base Bottom	Powder Coated	Hood	Gray	Side Entry	IP65	Dust Tight Water Resistant	2.362 in	1.693 in	2.362 in	H6B	PG21
TE Connectivity AMP Connectors T1220240140-000	125 °C	-40 °C	Aluminum Alloy Die Cast	Locking Clip (2) on Base Bottom	Powder Coated	Hood	Gray	Top Entry	IP65	Dust Tight Water Resistant	2.362 in	1.693 in	4.724 in	H24B	M40
