Description
General part information

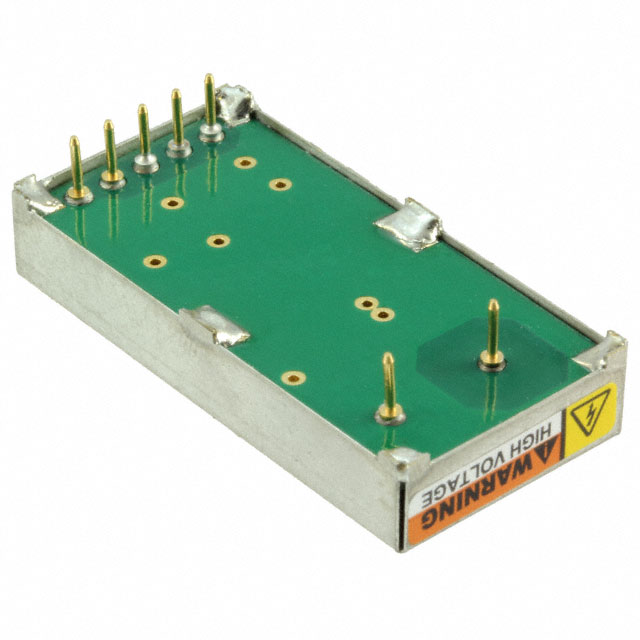

P12N
P series micro-power DC to high voltage DC converters feature extremely low ripple (<lt/>100µV) and low EMI/RFI due to a unique magnetic free design. A precision on-board reference and high impedance voltage programming input allow for easy plug-and-play designs. Typical applications include portable, battery powered CBRN detectors, low power electrostatic applications, low power biasing, low power piezo devices and low power aerosol devices.
Technical Specifications
Parameters and characteristics for this part
| Specification | P12N |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 2 µA |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Package / Case | 7-DIP Module |
| Size / Dimension Height | 0.24 in |
| Size / Dimension Length | 1.38 in |
| Size / Dimension Width | 0.68 in |
| Type | High Voltage - Non-Isolated Module |
| Voltage - Input (Max) | 12 V |
| Voltage - Input (Min) | 5 V |
| Voltage - Output 1 | -1200 V |
