TBP05R2-762-03BE
ActiveSame Sky (Formerly CUI Devices)
2~24 POLES, PLUGGABLE, RECEPTACL
TBP05R2-762-03BE
ActiveSame Sky (Formerly CUI Devices)
2~24 POLES, PLUGGABLE, RECEPTACL
Description
General part information
TBP05R2-762-03BE

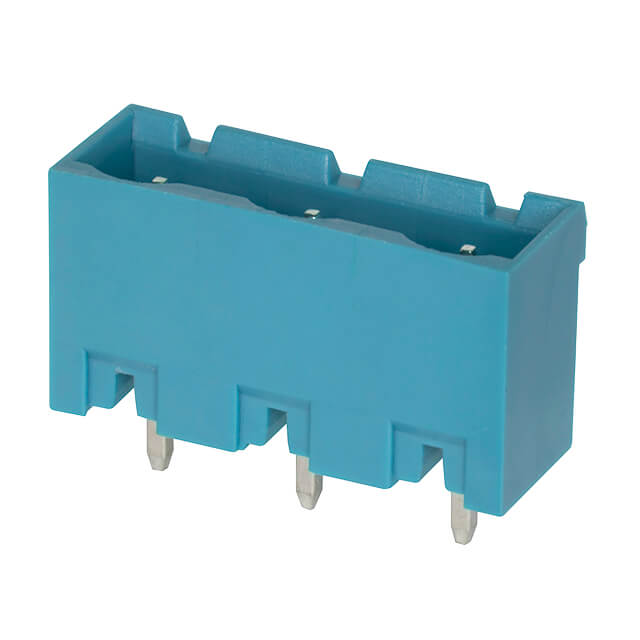

3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.300" (7.62mm) Vertical Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | TBP05R2-762-03BE |
|---|---|
| Color | Blue |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Contact Tail Length | 0.157 in |
| Current - IEC | 10 A |
| Current - UL | 15 A |
| Header Orientation | Vertical |
| Housing Material | Nylon 6/6, Polyamide, PA66 |
| Insulation Height | 0.472 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 3 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.3 in |
| Positions Per Level | 3 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - IEC | 630 V |
| Voltage - UL | 300 V |
