SWC-5.0-33
ObsoleteAmgis, LLC
FIXED IND 33UH 5A 47 MOHM TH
SWC-5.0-33
ObsoleteAmgis, LLC
FIXED IND 33UH 5A 47 MOHM TH
Description
General part information
SWC-5.0-33

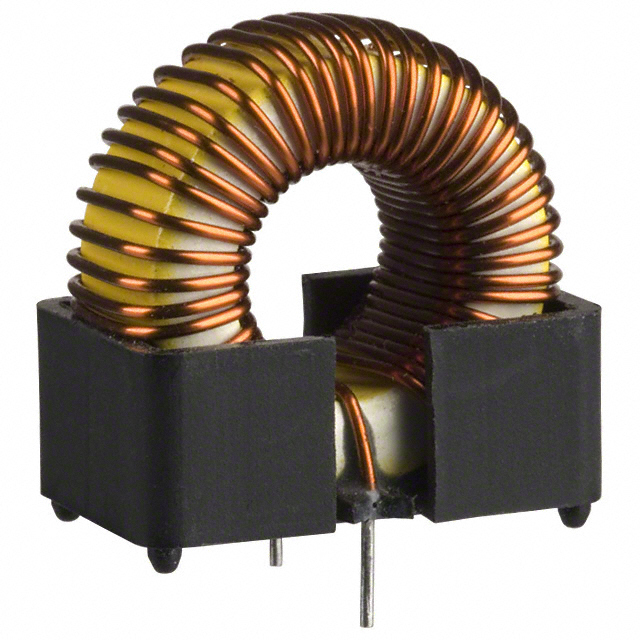

33 µH Unshielded Toroidal Inductor 5 A 47mOhm Radial, Vertical (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | SWC-5.0-33 |
|---|---|
| Current Rating | 5 A |
| DC Resistance (DCR) | 47 mOhm |
| Height - Seated (Max) | 1.059 in |
| Inductance | 33 µH |
| Inductance Frequency - Test | 10 kHz |
| Material - Core | Iron Powder |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Vertical (Open) |
| Shielding | Unshielded |
| Size / Dimension Length | 0.949 in |
| Size / Dimension Width | 0.598 in |
| Tolerance | 20 % |
| Type | Toroidal |
