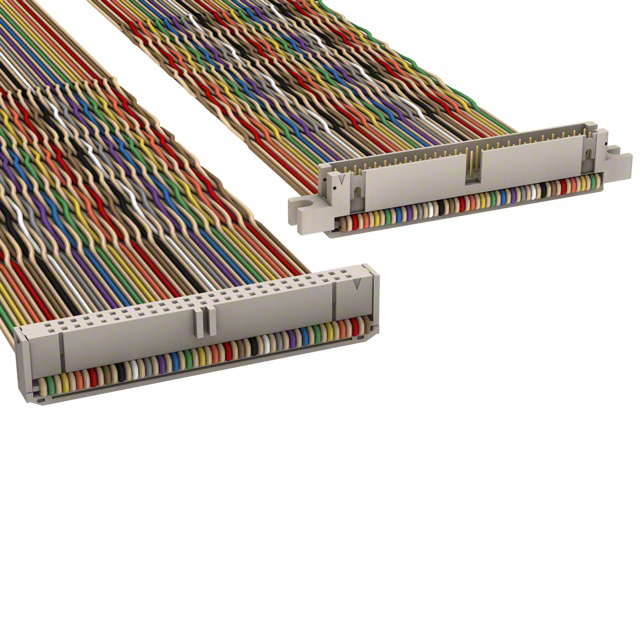

Specification	M3DYK-5060K

Cable Termination	IDC
Color	Multiple, Twisted Pair (Flat)
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Polarizing Key, Strain Relief (Plug), Strain Relief (Socket); Flange
Length	5 ft
Number of Positions	50
Number of Rows	2
Pitch - Cable	0.05 in
Pitch - Connector	0.1 in
Shielding	Unshielded

M3DYK Series

Part	Features	Connector Type	Contact Finish	Shielding	Cable Termination	Pitch - Connector	Number of Positions	Pitch - Cable	Contact Finish Thickness	Length	Number of Rows	Color
3M Electronic Specialty M3DYK-1036R	Polarizing Key Strain Relief (Plug) Strain Relief (Socket); Flange	Socket to Plug	Gold	Unshielded	IDC	0.1 in	10	0.05 in	30 µin	3 ft	2	Multiple Ribbon
3M Electronic Specialty M3DYK-5006R	Polarizing Key Strain Relief (Plug) Strain Relief (Socket); Flange	Socket to Plug	Gold	Unshielded	IDC	0.1 in	50	0.05 in	30 µin	0.5 ft	2	Multiple Ribbon
3M Electronic Specialty M3DYK-3436J	Polarizing Key Strain Relief (Plug) Strain Relief (Socket); Flange	Socket to Plug	Gold	Unshielded	IDC	0.1 in	34	0.05 in	30 µin	3 ft	2	Gray Ribbon
3M Electronic Specialty M3DYK-2006R	Polarizing Key Strain Relief (Plug) Strain Relief (Socket); Flange	Socket to Plug	Gold	Unshielded	IDC	0.1 in	20	0.05 in	30 µin	0.5 ft	2	Multiple Ribbon
3M Electronic Specialty M3DYK-1006R	Polarizing Key Strain Relief (Plug) Strain Relief (Socket); Flange	Socket to Plug	Gold	Unshielded	IDC	0.1 in	10	0.05 in	30 µin	0.5 ft	2	Multiple Ribbon
3M Electronic Specialty M3DYK-5036R	Polarizing Key Strain Relief (Plug) Strain Relief (Socket); Flange	Socket to Plug	Gold	Unshielded	IDC	0.1 in	50	0.05 in	30 µin	3 ft	2	Multiple Ribbon
3M Electronic Specialty M3DYK-1006J	Polarizing Key Strain Relief (Plug) Strain Relief (Socket); Flange	Socket to Plug	Gold	Unshielded	IDC	0.1 in	10	0.05 in	30 µin	0.5 ft	2	Gray Ribbon
3M Electronic Specialty M3DYK-6060K	Polarizing Key Strain Relief (Plug) Strain Relief (Socket); Flange	Socket to Plug	Gold	Unshielded	IDC	0.1 in	60	0.05 in	30 µin	5 ft	2	Multiple Twisted Pair (Flat)
3M Electronic Specialty M3DYK-2036R	Polarizing Key Strain Relief (Plug) Strain Relief (Socket); Flange	Socket to Plug	Gold	Unshielded	IDC	0.1 in	20	0.05 in	30 µin	3 ft	2	Multiple Ribbon
3M Electronic Specialty M3DYK-3418J	Polarizing Key Strain Relief (Plug) Strain Relief (Socket); Flange	Socket to Plug	Gold	Unshielded	IDC	0.1 in	34	0.05 in	30 µin	1.5 ft	2	Gray Ribbon

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

M3DYK-5060K | Datasheet

Datasheet

1700 Series

Ribbon Cable Assembly Length Guide

M3DYK-5060K | Datasheet
