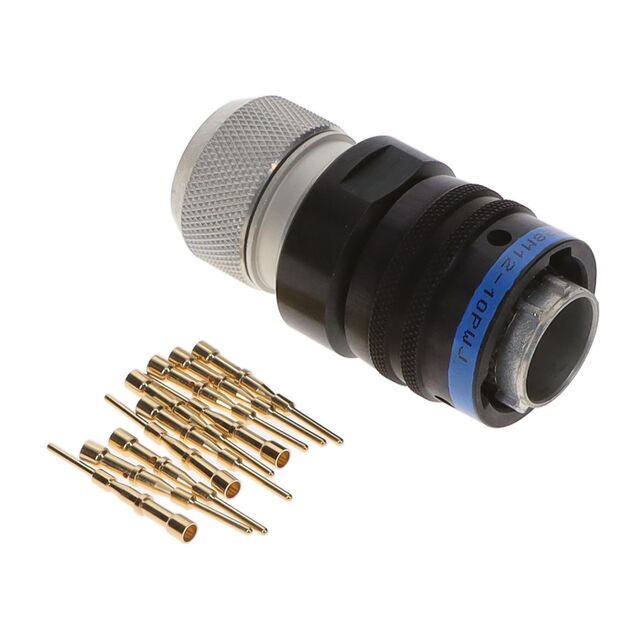

VG95328M12-10PWJ
ActiveMcGill Microwave Systems
VG95328 10C 10#20 PIN CABLE PLUG
VG95328M12-10PWJ
ActiveMcGill Microwave Systems
VG95328 10C 10#20 PIN CABLE PLUG
Description
General part information
VG95328M12-10PWJ
10 Position Circular Connector Plug, Male Pins Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | VG95328M12-10PWJ |
|---|---|
| Applications | Military |
| Color | Black |
| Connector Type | Male Pins, Plug |
| Fastening Type | Reverse Bayonet Lock |
| Number of Positions | 10 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | W |
| Shell Finish | Zinc-Tin |
| Shell Size - Insert Length | 12 mm |
| Shell Size - Insert Width | 10 mm |
| Shielding | Shielded |
| Termination | Crimp |
