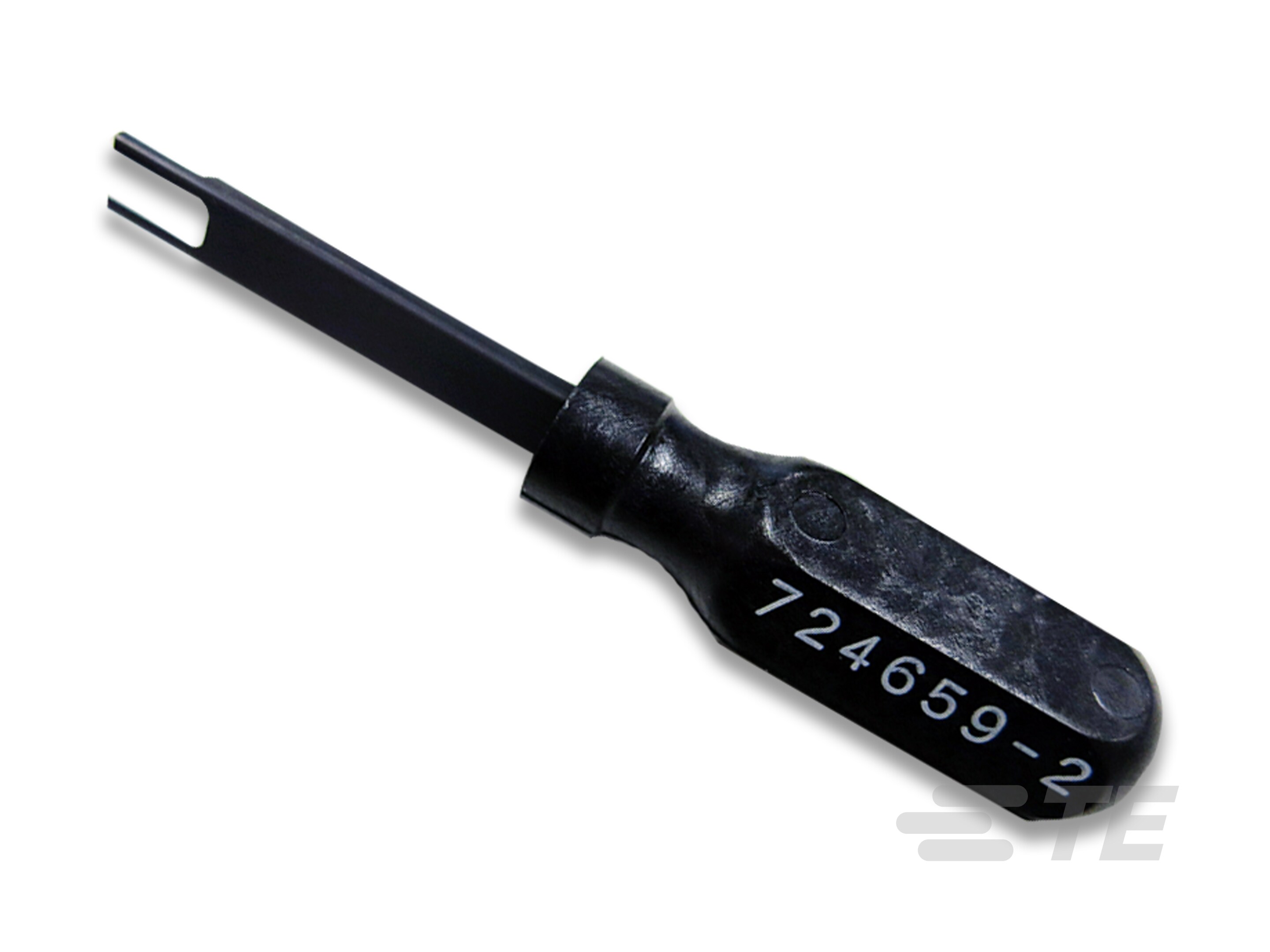

Specification	724659-2

For Use With/Related Products	Quick Connects Terminals, 10-22 AWG
Related Product Maximum Gauge	22 AWG
Related Product Minimum Gauge	10 AWG
Related Product Type	Quick Connects Terminals
Tool Type	Extraction Tool

Positive Lock 250 Series

...

Part	Insulation Diameter (Min)	Insulation Diameter (Max)	Tab Thickness	Gender	Insulation	Terminal Angle	Terminal Type	Tab Width	Contact Material	Termination	Mounting Type	Contact Finish	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)
TE Connectivity AMP Connectors 926790-1	0.118 in	0.169 in	0.032 in	Female	Non-Insulated	90 °	Angled Flag	0.25 in	Phosphor Bronze	Crimp	Free Hanging (In-Line) Right Angle	Tin	14 AWG	17 AWG
TE Connectivity AMP Connectors 926790-3	0.118 in	0.169 in	0.032 in	Female	Non-Insulated	90 °	Angled Flag	0.25 in	Phosphor Bronze	Crimp	Free Hanging (In-Line) Right Angle	Tin	14 AWG	17 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
