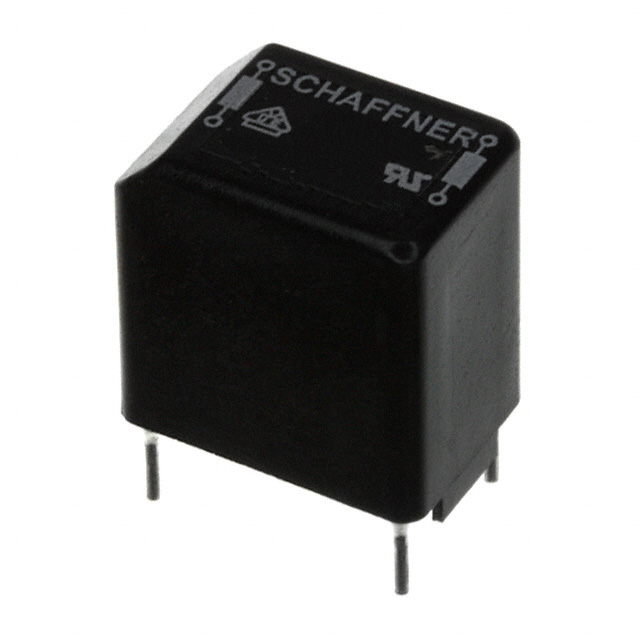

Specification	RN212-0.5-02-15M

Approval Agency	VDE, UR, ENEC
Current Rating (Max)	500 mA
DC Resistance (DCR) (Max)	700 mOhm
DC Resistance (DCR) (Typ)	700 mOhm
Filter Type	Power Line
Height (Max)	0.799 in
Inductance	15 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Package / Case	4 PC Pin, Vertical
Package Leads	4 Leads
Package Name	Vertical
Size / Dimension Length	0.709 in
Size / Dimension Width	0.492 in
Voltage Rating - AC	300 V

Schaffner RN-Series Series

...

Part	DC Resistance (DCR) (Typ)	DC Resistance (DCR) (Max)	Inductance	Approval Agency	Current Rating (Max)	Package Leads	Package / Case	Package Name	Mounting Type	Height (Max)	Number of Lines	Voltage Rating - AC	Size / Dimension Diameter	Size / Dimension Width	Filter Type	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Length
TE Connectivity AMP Connectors RN102-0.3-02-12M	1.1 Ohm	1.1 Ohm	12 mH	ENEC UR VDE	300 mA	4 Leads	4 PC Pin Horizontal	Horizontal	Through Hole	0.366 in	2	300 V	0.551 in	0.551 in	Power Line	100 °C	-40 °C
TE Connectivity AMP Connectors RN214-0.5-02-39M	830 mOhm	830 mOhm	39 mH	ENEC UR VDE	500 mA	4 Leads	4 PC Pin Vertical	Vertical	Through Hole	0.996 in	2	300 V		0.61 in	Power Line	100 °C	-40 °C	0.906 in
TE Connectivity AMP Connectors RN102-0.3-02-12M	1.1 Ohm	1.1 Ohm	12 mH	ENEC UR VDE	300 mA	4 Leads	4 PC Pin Horizontal	Horizontal	Through Hole	0.366 in	2	300 V	0.551 in	0.551 in	Power Line	100 °C	-40 °C
TE Connectivity AMP Connectors RN142-0.5-02-82M	2.7 Ohm	2.7 Ohm	82 mH	ENEC UR VDE	500 mA	4 Leads	4 PC Pin Horizontal	Horizontal	Through Hole	0.787 in	2	300 V		1.28 in	Power Line	100 °C	-40 °C	1.303 in
TE Connectivity AMP Connectors RN216-0.5-02-47M	960 mOhm	960 mOhm	47 mH	ENEC UR VDE	500 mA	4 Leads	4 PC Pin Vertical	Vertical	Through Hole	0.996 in	2	300 V		0.61 in	Power Line	100 °C	-40 °C	0.906 in
TE Connectivity AMP Connectors RN102-0.6-02-4M4	380 mOhm	380 mOhm	4.4 mH	ENEC UR VDE	600 mA	4 Leads	4 PC Pin Horizontal	Horizontal	Through Hole	0.366 in	2	300 V	0.551 in	0.551 in	Power Line	100 °C	-40 °C
TE Connectivity AMP Connectors RN112-1.5-02-3M3	102 mOhm	102 mOhm	3.3 mH	ENEC UR VDE	1.5 A	4 Leads	4 PC Pin Horizontal	Horizontal	Through Hole	0.508 in	2	300 V		0.673 in	Power Line	100 °C	-40 °C	0.697 in
TE Connectivity AMP Connectors RN232-1.6-02-10M	170 mOhm	170 mOhm	10 mH	ENEC UR VDE	1.6 A	4 Leads	4 PC Pin Vertical	Vertical	Through Hole	1.362 in	2	300 V		0.709 in	Power Line	100 °C	-40 °C	1.22 in
TE Connectivity AMP Connectors RN112-0.5-02-15M	700 mOhm	700 mOhm	15 mH	ENEC UR VDE	500 mA	4 Leads	4 PC Pin Horizontal	Horizontal	Through Hole	0.508 in	2	300 V		0.673 in	Power Line	100 °C	-40 °C	0.697 in
TE Connectivity AMP Connectors RN202-0.6-02-4M4	380 mOhm	380 mOhm	4.4 mH	ENEC UR VDE	600 mA	4 Leads	4 PC Pin Vertical	Vertical	Through Hole	0.543 in	2	300 V		0.346 in	Power Line	100 °C	-40 °C	0.717 in
