629-037-240-535
ActiveEDAC Inc.
629 SERIES RIGHT ANGLE D-SUB PLU
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 629-037-240-535 |
|---|---|
| Backset Spacing | 0.409 in |
| Backset Spacing | 10.4 mm |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Board Lock, Mounting Brackets, Grounding Indents, Shielded |
| Flange Feature | Housing/Shell (M3) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 4 (DC, C) |
| Termination | Solder |
629-037 Series
| Part | Contact Type | Contact Material | Shell Size, Connector Layout | Contact Finish | Termination | Features | Number of Rows | Backset Spacing | Backset Spacing | Number of Positions | Color | Dielectric Material | Connector Style | Current Rating (Amps) | Contact Finish Thickness | Mounting Type | Flange Feature | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material, Finish | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Signal | Copper Alloy | 4 (DC C) | Gold | Solder | Grounding Indents Mounting Brackets Shielded | 2 | 0.409 in | 10.4 mm | 37 | Black | Polyester Thermoplastic | D-Sub | 3 A | Flash | Panel Mount Right Angle Through Hole | Female Screwlock (4-40) Mating Side | Male Pins Plug | -55 °C | 125 °C | Nickel Plated Steel | UL94 V-0 | ||
EDAC Inc. | Signal | Copper Alloy | 4 (DC C) | Gold | Solder | Board Lock Grounding Indents Mounting Brackets Shielded | 2 | 0.409 in | 10.4 mm | 37 | Black | Polyester Thermoplastic | D-Sub | 3 A | Panel Mount Right Angle Through Hole | Female Screwlock (4-40) Mating Side | Male Pins Plug | -55 °C | 85 °C | Nickel Plated Steel | UL94 V-0 | 0.76 Ám | 30 Áin | |
EDAC Inc. | Signal | Copper Alloy | 4 (DC C) | Gold | Solder | Board Lock Grounding Indents Mounting Brackets Shielded | 2 | 0.409 in | 10.4 mm | 37 | Black | Polyester Thermoplastic | D-Sub | 3 A | Flash | Panel Mount Right Angle Through Hole | Housing/Shell (M3) | Male Pins Plug | -55 °C | 125 °C | Nickel Plated Steel | UL94 V-0 | ||
EDAC Inc. | Signal | Copper Alloy | 4 (DC C) | Gold | Solder | Board Lock Grounding Indents Mounting Brackets Shielded | 2 | 0.409 in | 10.4 mm | 37 | Black | Polyester Thermoplastic | D-Sub | 3 A | Panel Mount Right Angle Through Hole | Housing/Shell (Unthreaded) | Male Pins Plug | -55 °C | 125 °C | Nickel Plated Steel | UL94 V-0 | 0.76 Ám | 30 Áin | |
EDAC Inc. | Signal | Copper Alloy | 4 (DC C) | Gold | Solder | Board Lock Grounding Indents Mounting Brackets Shielded | 2 | 0.409 in | 10.4 mm | 37 | Black | Polyester Thermoplastic | D-Sub | 3 A | Flash | Panel Mount Right Angle Through Hole | Housing/Shell (M3) | Male Pins Plug | -55 °C | 125 °C | Nickel Plated Steel | UL94 V-0 | ||
EDAC Inc. | Signal | Copper Alloy | 4 (DC C) | Gold | Solder | Board Lock Grounding Indents Mounting Brackets Shielded | 2 | 0.409 in | 10.4 mm | 37 | Black | Polyester Thermoplastic | D-Sub | 3 A | Panel Mount Right Angle Through Hole | Housing/Shell (4-40) | Male Pins Plug | -55 °C | 125 °C | Nickel Plated Steel | UL94 V-0 | 0.38 µm | 15 µin | |
EDAC Inc. | Signal | Copper Alloy | 4 (DC C) | Gold | Solder | Board Lock Grounding Indents Mounting Brackets Shielded | 2 | 0.409 in | 10.4 mm | 37 | Black | Polyester Thermoplastic | D-Sub | 3 A | Panel Mount Right Angle Through Hole | Housing/Shell (Unthreaded) | Male Pins Plug | -55 °C | 125 °C | Nickel Plated Steel | UL94 V-0 | 0.38 µm | 15 µin | |
EDAC Inc. | Signal | Copper Alloy | 4 (DC C) | Gold | Solder | Board Lock Grounding Indents Mounting Brackets Shielded | 2 | 0.409 in | 10.4 mm | 37 | Black | Polyester Thermoplastic | D-Sub | 3 A | Panel Mount Right Angle Through Hole | Housing/Shell (M3) | Male Pins Plug | -55 °C | 125 °C | Nickel Plated Steel | UL94 V-0 | 0.38 µm | 15 µin | |
EDAC Inc. | Signal | Copper Alloy | 4 (DC C) | Gold | Solder | Grounding Indents Mounting Brackets Shielded | 2 | 0.409 in | 10.4 mm | 37 | Black | Polyester Thermoplastic | D-Sub | 3 A | Panel Mount Right Angle Through Hole | Housing/Shell (Unthreaded) | Male Pins Plug | -55 °C | 125 °C | Nickel Plated Steel | UL94 V-0 | 0.76 Ám | 30 Áin | |
EDAC Inc. | Signal | Copper Alloy | 4 (DC C) | Gold | Solder | Board Lock Grounding Indents Mounting Brackets Shielded | 2 | 0.409 in | 10.4 mm | 37 | Black | Polyester Thermoplastic | D-Sub | 3 A | Flash | Panel Mount Right Angle Through Hole | Female Screwlock (4-40) Mating Side | Male Pins Plug | -55 °C | 125 °C | Nickel Plated Steel | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1000 | $ 2.05 | |
Description
General part information
629-037 Series

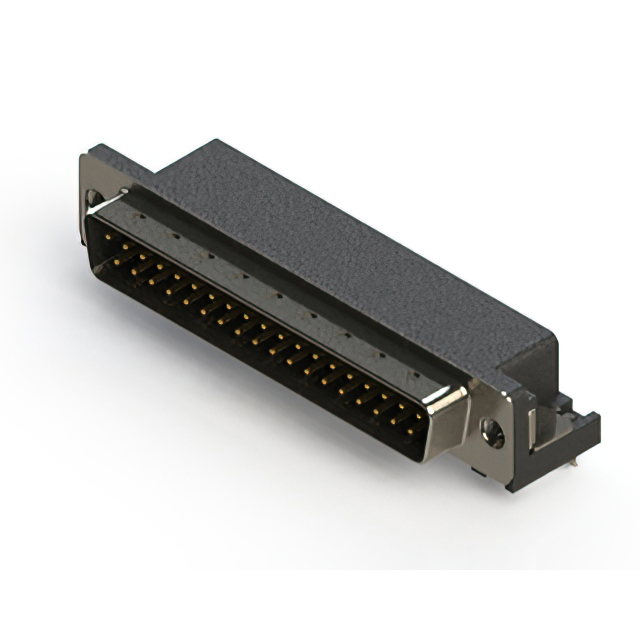

37 Position D-Sub Plug, Male Pins Connector
