P018-002-AGN
ActiveEaton Tripp Lite
CORD 14AWG IEC320C14 - 320C15 2'
P018-002-AGN
ActiveEaton Tripp Lite
CORD 14AWG IEC320C14 - 320C15 2'
Description
General part information
P018-002-AGN

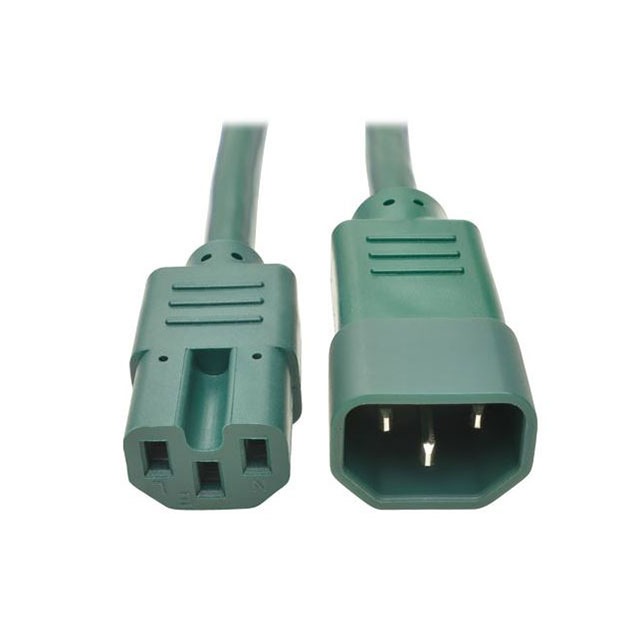

2.00' (609.6mm) Power Cord Green IEC 320-C14 To IEC 320-C15 SJT
Technical Specifications
Parameters and characteristics for this part
| Specification | P018-002-AGN |
|---|---|
| 1st Connector | IEC 320-C14 |
| 2nd Connector | IEC 320-C15 |
| Approval Agency Marking | cUL, UL |
| Approved Countries | United States, Canada |
| Color | Green |
| Cord Type | SJT |
| Current Rating | 15 A |
| Length | 24 in |
| Number of Conductors | 3 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Shielding | Unshielded |
| Style | Female Sockets (Slots), Male Pins (Blades) |
| Voltage Rating (AC) Maximum | 250 VAC |
| Voltage Rating (AC) Minimum | 100 VAC |
| Wire Gauge | 14 AWG |
