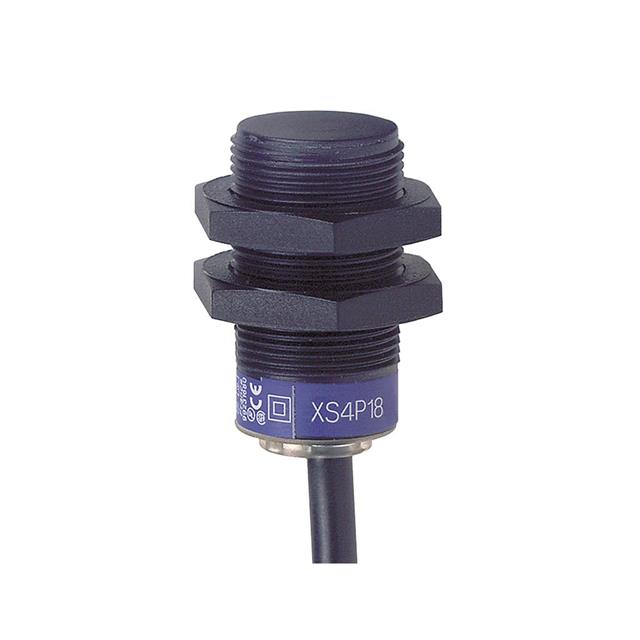

XS4P18PA340
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M18, 8 MM, PNP, 12 V TO 24 V
XS4P18PA340
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M18, 8 MM, PNP, 12 V TO 24 V
Description
General part information
XS4P18PA340
Inductive Proximity Sensor 0.315" (8mm) IP68 Cylinder, Threaded - M18
Technical Specifications
Parameters and characteristics for this part
| Specification | XS4P18PA340 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP68 |
| Material - Body | Polyphenylene Sulfide (PPS) |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Cylinder, Threaded - M18 |
| Sensing Distance | 0.315 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
