1801739-1
ActiveTE Connectivity AMP Connectors

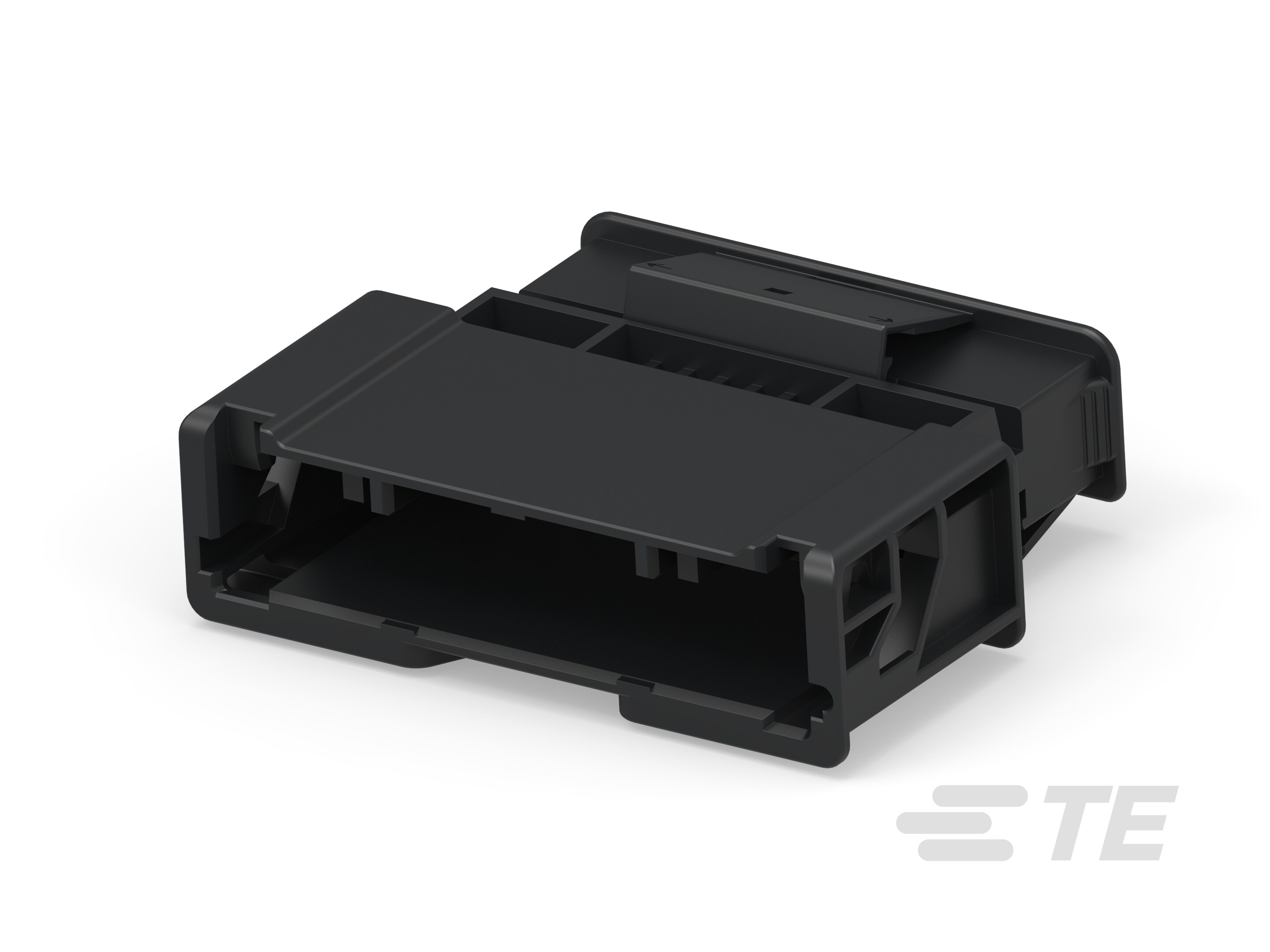

18W HYBRID UNSEALED TAB HOUSING BLACK
1801739-1
ActiveTE Connectivity AMP Connectors
18W HYBRID UNSEALED TAB HOUSING BLACK
Description
General part information
MCON Interconnection System Series
18 Position Housing, Housing for Male Terminals, Wire-to-Wire, 3 mm / 5.5 mm [.12 in / .22 in] Centerline, Black, MCON Interconnection System
Technical Specifications
Parameters and characteristics for this part
| Specification | 1801739-1 |
|---|---|
| Color | Black |
| Connector Type | Housing for Male Insert |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 18 |
| Number of Rows | 3 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.118 in |
| Row Spacing | 0.1 in |
