HD-EMB1305-SC
ActivePUI Audio, Inc.
LOWCURRENT HD MOTOR 3VDC 13000RP
HD-EMB1305-SC
ActivePUI Audio, Inc.
LOWCURRENT HD MOTOR 3VDC 13000RP
Description
General part information

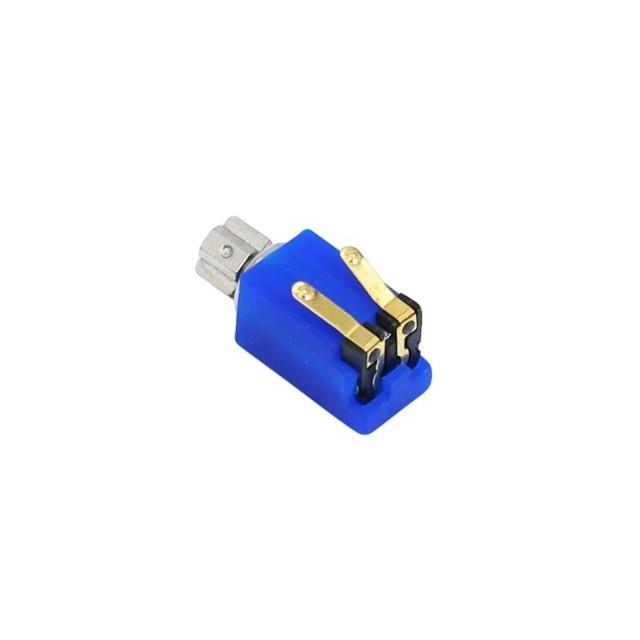

HD-EMB1305-SC
DC Motor Vibration, ERM 13000 RPM 3VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | HD-EMB1305-SC |
|---|---|
| Function | Vibration, ERM, ERM (Haptic) |
| Length - Shaft and Bearing | 0.157 in |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| RPM | 13000 RPM |
| Size / Dimension Length | 0.181 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.193 in |
| Termination Style | Pressure Contact |
| Type | DC Motor |
| Voltage - Rated | 3 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
