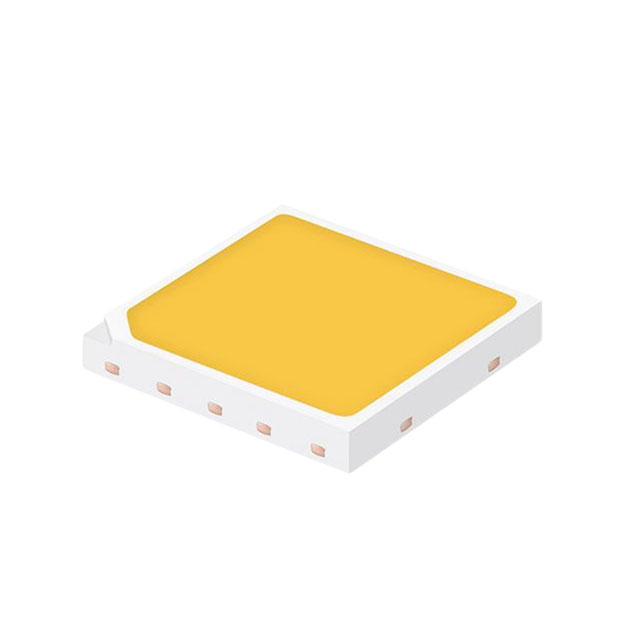

SPHWH1L5N605YEP3A2

Active

Samsung Semiconductor, Inc.

LED LH502C COOL WHITE 6500K SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SPHWH1L5N605YEP3A2

Active

Samsung Semiconductor, Inc.

LED LH502C COOL WHITE 6500K SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.08
		10	$ 0.70
		100	$ 0.46
		1000	$ 0.36
	Digi-Reel®	1	$ 1.08
		10	$ 0.70
		100	$ 0.46
		1000	$ 0.36
	Tape & Reel (TR)	2000	$ 0.34
		6000	$ 0.33
		10000	$ 0.32

Description

General part information

SPHWH1 Series

LED Lighting LH502C White, Cool 6500K 3-Step MacAdam Ellipse 6.1V 640mA 120° 2020 (5050 Metric)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SPHWH1L5N605YEP3A2	SPHWH1 Series

CCT (K)	6500 K	2200 - 6500 K
CCT (K)	-	5-Step MacAdam Ellipse
Color	Cool, White	Cool, White, Neutral, Warm
CRI (Color Rendering Index)	80	70 - 90
Current - Max [Max]	880 mA	1.5 - 880 mA
Current - Test	640 mA	350 - 640 mA
Flux @ 25°C, Current - Test	-	420 - 720 lm
Flux @ 25°C, Current - Test	-	510 - 600 lm
Flux @ 25°C, Current - Test	-	470 - 560 lm
Flux @ 85°C, Current - Test	-	105 - 145 lm
Flux @ 85°C, Current - Test	-	120 - 160 lm
Flux @ 85°C, Current - Test	-	90 - 130 lm
Height - Seated (Max)	-	0.7 mm
Height - Seated (Max)	-	0.028 in
Height - Seated (Max)	-	2.06 mm
Height - Seated (Max) [Max] [z]	0.8 mm	0.8 mm
Height - Seated (Max) [Max] [z]	0.031 "	0.031 - 0.081 "
Lumens/Watt @ Current - Test	-	105 - 184 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	2020	2020, 2020 (5250 Metric), 1414
Package / Case	5050 Metric	5050 Metric, 3535 Metric
Size / Dimension	-	3.5 mm
Size / Dimension	-	3.5 mm
Size / Dimension [x]	0.197 in	0.197 - 0.204 in
Size / Dimension [x]	5 mm	0.138 - 5.18 mm
Size / Dimension [y]	5 mm	0.138 - 5 mm
Size / Dimension [y]	0.197 "	0.197 "
Supplier Device Package	SMD	SMD, 3535
Supplier Device Package	-	2020
Thermal Resistance of Package	-	1.9 °C/W
Thermal Resistance of Package	-	4 °C/W
Thermal Resistance of Package [diameter]	3 °C/W	3 °C/W
Viewing Angle	120 °	116 - 120 °
Voltage - Forward (Vf) (Typ)	6.1 V	2.85 - 25 V

SPHWH1 Series

LED LH508A+ COOL WHT 5000K SMD

...

Part	Lumens/Watt @ Current - Test	Mounting Type	Supplier Device Package	Color	CRI (Color Rendering Index)	Current - Test	Viewing Angle	Package / Case	Package / Case	Thermal Resistance of Package [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Flux @ 25°C, Current - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	CCT (K)	CCT (K)
Samsung Semiconductor, Inc. SPHWH1L5N605YER3A1	156 lm/W	Surface Mount	SMD	Cool, White	80	640 mA	120 °	2020	5050 Metric	3 °C/W	0.8 mm	0.031 "	6.1 V	880 mA	610 lm	0.197 in	5 mm	0.197 "	5 mm
Samsung Semiconductor, Inc. SPHWH1L5N603YET5A2		Surface Mount	SMD	Neutral, White	70	640 mA	120 °	2020	5050 Metric	3 °C/W	0.8 mm	0.031 "	6.1 V	880 mA		0.197 in	5 mm	0.197 "	5 mm	4000 K
Samsung Semiconductor, Inc. SPHWH1L5N603YEV3A1	159 lm/W	Surface Mount	SMD	Warm, White	70	640 mA	120 °	2020	5050 Metric	3 °C/W	0.8 mm	0.031 "	6.1 V	880 mA	620 lm	0.197 in	5 mm	0.197 "	5 mm	3000 K
Samsung Semiconductor, Inc. SPHWH1L5N603XEV5A1	158 lm/W	Surface Mount	SMD	Warm, White	70		120 °	2020	5050 Metric	3 °C/W	0.8 mm	0.031 "	24.5 V	220 mA	620 lm	0.197 in	5 mm	0.197 "	5 mm	3000 K
Samsung Semiconductor, Inc. SPHWH1L5N605YET3A2		Surface Mount	SMD	Neutral, White	80	640 mA	120 °	2020	5050 Metric	3 °C/W	0.8 mm	0.031 "	6.1 V	880 mA		0.197 in	5 mm	0.197 "	5 mm	4000 K
Samsung Semiconductor, Inc. SPHWH1L5N605XET5A2		Surface Mount	SMD	Neutral, White	80		120 °	2020	5050 Metric	3 °C/W	0.8 mm	0.031 "	24.5 V	220 mA		0.197 in	5 mm	0.197 "	5 mm	4000 K
Samsung Semiconductor, Inc. SPHWH1L5N605YEU3A1	152 lm/W	Surface Mount	SMD	Warm, White	80	640 mA	120 °	2020	5050 Metric	3 °C/W	0.8 mm	0.031 "	6.1 V	880 mA	595 lm	0.197 in	5 mm	0.197 "	5 mm	3500 K
Samsung Semiconductor, Inc. SPHWH1L5N605YER5A1	156 lm/W	Surface Mount	SMD	Cool, White	80	640 mA	120 °	2020	5050 Metric	3 °C/W	0.8 mm	0.031 "	6.1 V	880 mA	610 lm	0.197 in	5 mm	0.197 "	5 mm	5000 K	5-Step MacAdam Ellipse
Samsung Semiconductor, Inc. SPHWH1L5N603XET5A1	166 lm/W	Surface Mount	SMD	Neutral, White	70		120 °	2020	5050 Metric	3 °C/W	0.8 mm	0.031 "	24.5 V	220 mA	650 lm	0.197 in	5 mm	0.197 "	5 mm	4000 K
Samsung Semiconductor, Inc. SPHWH1L5N603YEP3A1	166 lm/W	Surface Mount	SMD	Cool, White	70	640 mA	120 °	2020	5050 Metric	3 °C/W	0.8 mm	0.031 "	6.1 V	880 mA	650 lm	0.197 in	5 mm	0.197 "	5 mm	6500 K
