131648-1

Active

TE Connectivity AMP Connectors

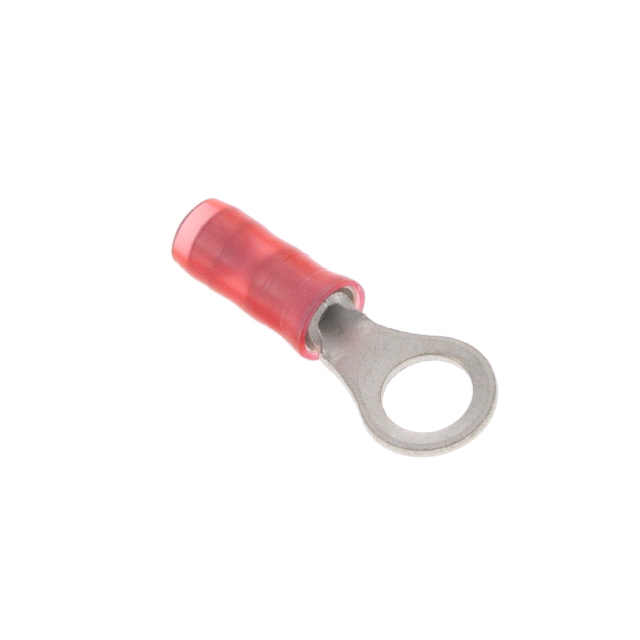

CONN RING CIRC 20AWG CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RING CIRC 20AWG CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	131648-1

Color	Red Stripe, Red
Contact Material	Copper
Features	Serrated Termination, Insulation Restriction
Insulation	Insulated
Length - Overall [x]	23.3 mm
Length - Overall [x]	0.917 in
Material - Insulation	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Terminal Type	Circular
Termination	Crimp
Width - Outer Edges [x]	7.9 mm
Width - Outer Edges [x]	0.311 in
Wire Gauge	20 AWG

CONN RING CIRC 20AWG CRIMP

Part	Insulation	Width - Outer Edges [x]	Width - Outer Edges [x]	Color	Terminal Type	Material - Insulation	Features	Contact Material	Mounting Type	Length - Overall [x]	Length - Overall [x]	Termination	Wire Gauge
TE Connectivity AMP Connectors 131648-1	Insulated	7.9 mm	0.311 in	Red, Red Stripe	Circular	Nylon, Polyamide (PA)	Insulation Restriction, Serrated Termination	Copper	Free Hanging (In-Line)	23.3 mm	0.917 in	Crimp	20 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ring Terminal Connector Circular 20 AWG Crimp
