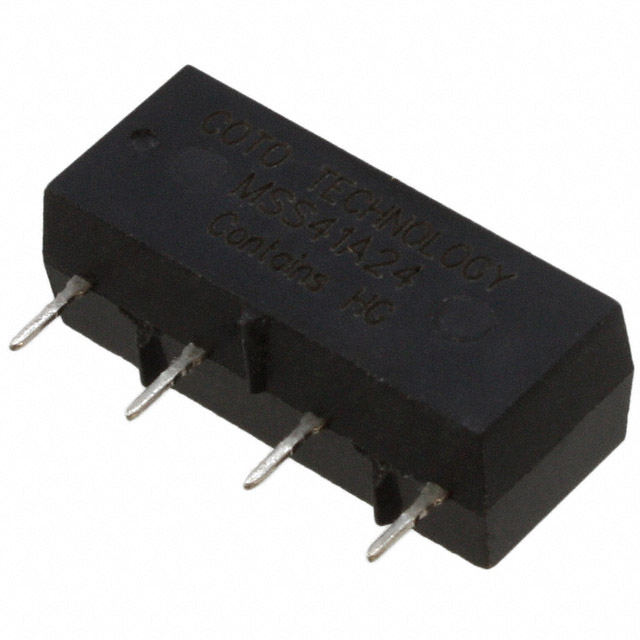

MSS41A24
UnknownCOTO TECHNOLOGY
RELAY REED SPST 2A 24V
MSS41A24
UnknownCOTO TECHNOLOGY
RELAY REED SPST 2A 24V
Description
General part information
MSS41A24
RELAY REED SPST 2A 24V
Technical Specifications
Parameters and characteristics for this part
| Specification | MSS41A24 |
|---|---|
| Coil Current | 11.1 mA |
| Coil Resistance | 2.15 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO |
| Contact Rating (Current) | 2 A |
| Form A Count | 1 |
| Mounting Type | Through Hole |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2 VDC |
| Operate Time | 1.75 ms |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Release Time | 1.5 ms |
| Switching Voltage AC (Max) | 500 VAC |
| Switching Voltage DC (Max) | 500 VDC |
| Termination Style | PC Pin |
