TWR-56F8400

Active

NXP USA Inc.

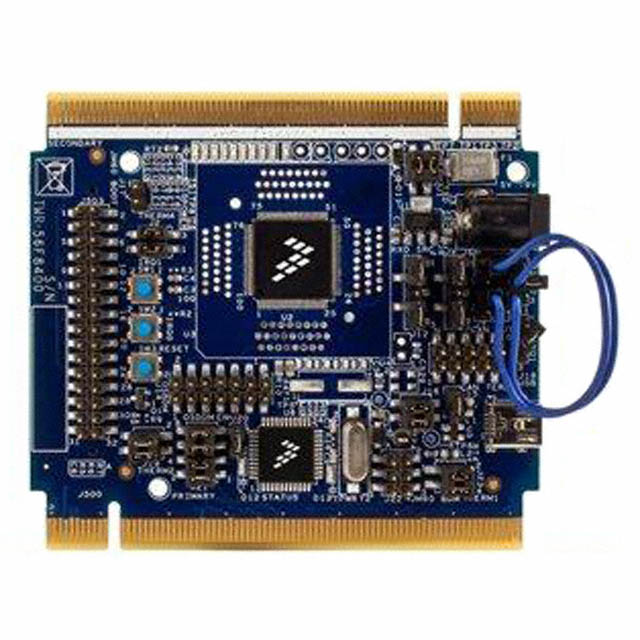

TOWER SYSTEM MC56F84789 EVAL BRD

Search across all available documentation for this part.

Active

NXP USA Inc.

TOWER SYSTEM MC56F84789 EVAL BRD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TWR-56F8400	TWR-56 Series

Board Type	Evaluation Platform	Evaluation Platform
Contents	Cable(s), Board(s)	Cable(s), Board(s)
Core Processor	56800EX	56800E, 56800EX
Mounting Type	Fixed	Fixed
Platform	Tower System	Tower System
Suggested Programming Environment	CodeWarrior	CodeWarrior
Type	DSP	DSP
Utilized IC / Part	MC56F84789	MC56F8257, MC56F823xx, MC56F827xx, MC56F84789

TOWER SYSTEM MC56F8257 EVAL BRD

Part	Utilized IC / Part	Board Type	Core Processor	Suggested Programming Environment	Mounting Type	Type	Platform	Contents
NXP USA Inc. TWR-56F8257	MC56F8257	Evaluation Platform	56800E	CodeWarrior	Fixed	DSP	Tower System	Board(s), Cable(s)
NXP USA Inc. TWR-56F8200	MC56F823xx, MC56F827xx	Evaluation Platform	56800EX		Fixed	DSP	Tower System	Board(s), Cable(s)
NXP USA Inc. TWR-56F8400	MC56F84789	Evaluation Platform	56800EX	CodeWarrior	Fixed	DSP	Tower System	Board(s), Cable(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 205.28

General part information

MC56F84789 Tower System - 56800EX DSP Embedded Evaluation Board
