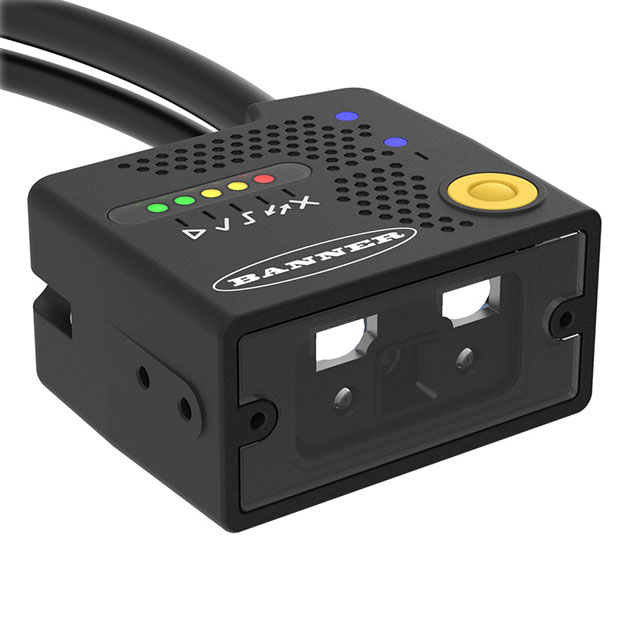

ABR3009-WSE1

Active

BANNER ENGINEERING

BARCODE SCANNER, 752 X 480 PIXELS, GRAYSCALE, ETHERNET, PC INTERFACE, 1D, ABR 3000 SERIES

Search across all available documentation for this part.

Active

BANNER ENGINEERING

BARCODE SCANNER, 752 X 480 PIXELS, GRAYSCALE, ETHERNET, PC INTERFACE, 1D, ABR 3000 SERIES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ABR3009-WSE1	ABR3009 Series

Image Type	Monochrome	Monochrome
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Light Source	Integrated (White)	Integrated (White)
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [Max]	45 °C	45 °C
Operating Temperature [Min]	0 °C	0 °C
Resolution	0.4 MP, 360960 Pixels	0.4 - 360960 MP
Resolution [x]	752	752
Resolution [y]	480	480
Sensor Type	CMOS	CMOS
Termination Style	Cable with Connector	Cable with Connector
Type	Bar Code Reader	Bar Code Reader
Voltage - Supply [Max]	30 VDC	30 VDC
Voltage - Supply [Min]	5 V	5 V

BARCODE SCANNER, 752 X 480 PIXELS, GRAYSCALE, ETHERNET, PC INTERFACE, 1D, ABR 3000 SERIES

Part	Sensor Type	Operating Temperature [Max]	Ingress Protection	Resolution	Resolution [x]	Resolution [y]	Light Source	Termination Style	Mounting Type	Image Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Type
BANNER ENGINEERING ABR3009-WSE1	CMOS	45 °C	IP65 - Dust Tight, Water Resistant	0.4 MP, 360960 Pixels	752	480	Integrated (White)	Cable with Connector	Chassis Mount	Monochrome	5 V	30 VDC	Bar Code Reader
BANNER ENGINEERING ABR3009-WSU2	CMOS	45 °C	IP65 - Dust Tight, Water Resistant	0.4 MP, 360960 Pixels	752	480	Integrated (White)	Cable with Connector	Chassis Mount	Monochrome	5 V	30 VDC	Bar Code Reader
BANNER ENGINEERING ABR3009-WSE2	CMOS	45 °C	IP65 - Dust Tight, Water Resistant	0.4 MP, 360960 Pixels	752	480	Integrated (White)	Cable with Connector	Chassis Mount	Monochrome	5 V	30 VDC	Bar Code Reader
BANNER ENGINEERING ABR3009-WSU1	CMOS	45 °C	IP65 - Dust Tight, Water Resistant	0.4 MP, 360960 Pixels	752	480	Integrated (White)	Cable with Connector	Chassis Mount	Monochrome	5 V	30 VDC	Bar Code Reader

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1264.01
Newark	Each	1	$ 1123.70

General part information

BARCODE SCANNER, 752 X 480 PIXELS, GRAYSCALE, ETHERNET, PC INTERFACE, 1D, ABR 3000 SERIES
