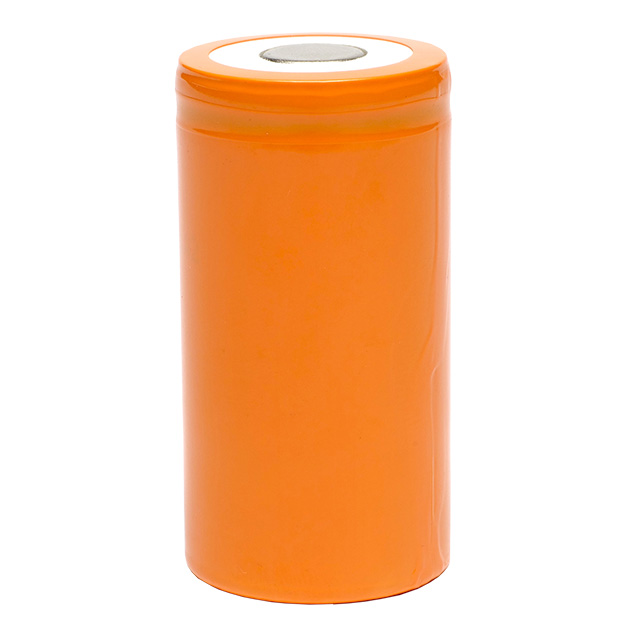

BK-310CHA04
ActivePanasonic Industrial Automation Sales
BATTERY NIMH 1.2V 3.1AH C
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BK-310CHA04
ActivePanasonic Industrial Automation Sales
BATTERY NIMH 1.2V 3.1AH C
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BK-310CHA04 |
|---|---|
| Battery Cell Size | C |
| Battery Chemistry | Nickel Metal Hydride |
| Capacity | 3.1 Ah |
| Discharge Rate | 620 mA |
| Size / Dimension [diameter] | 25.8 mm |
| Size / Dimension [diameter] | 1.02 " |
| Size / Dimension [z] | 1.97 " |
| Size / Dimension [z] | 50 mm |
| Standard Charge Current | 310 mA |
| Standard Charge Time | 16 Hrs |
| Termination Style | Flat Top (Non-Extending) |
| Voltage - Rated | 1.2 V |
| Weight | 80 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 8.63 | |
| 20 | $ 7.14 | |||
| 180 | $ 5.90 | |||
| 360 | $ 5.48 | |||
| 540 | $ 5.16 | |||
| 1080 | $ 4.88 | |||
Description
General part information
BK-310 Series
C 1.2 V Nickel Metal Hydride Battery Rechargeable (Secondary) 3.1Ah
