17400-N92

Obsolete

Aven Tools

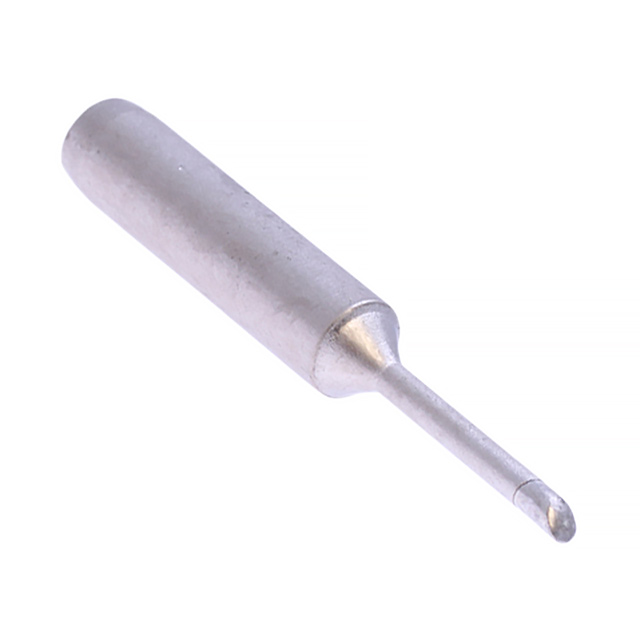

SOLDER TIPS STYLE N9-1 2PC

Search across all available documentation for this part.

Obsolete

Aven Tools

SOLDER TIPS STYLE N9-1 2PC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	17400-N92	17400 Series

Diameter [diameter]	0.079 "	0.079 "
Diameter [diameter]	2 mm	2 mm
For Use With/Related Products	17400	17405, 17400
Temperature Range	-	160 °C
Temperature Range	-	896 - 900 °F
Tip Shape	Hoof	Hoof
Tip Type	Soldering	Soldering
Width	-	0.118 "
Width	-	3 mm

SOLDER TIPS STYLE N9-1 2PC

Part	Temperature Range [Min]	Temperature Range [Max]	For Use With/Related Products	Tip Type	Width	Width	Tip Shape	Diameter [diameter]	Diameter [diameter]
Aven Tools 17400-N93	160 °C	896 °F, 900 °F	17400, 17405	Soldering	0.118 "	3 mm
Aven Tools 17400-N92			17400	Soldering			Hoof	0.079 "	2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SOLDER TIPS STYLE N9-1 2PC
