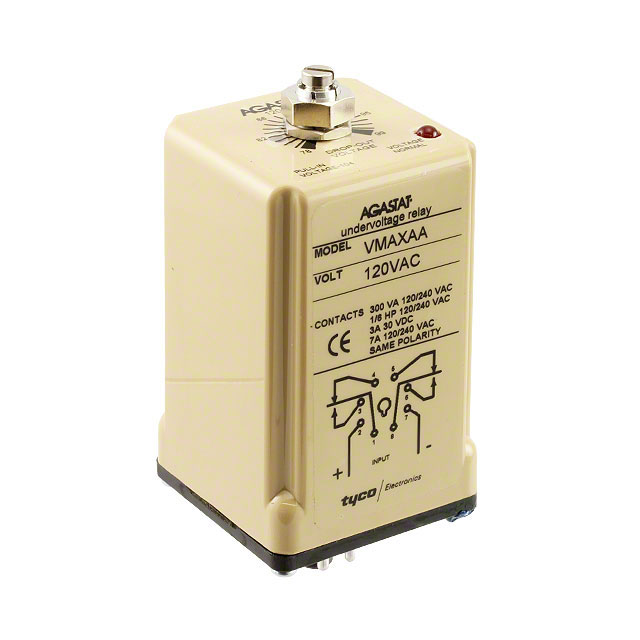

VMAXAA

Active

TE Connectivity Aerospace, Defense and Marine

RELAY GEN PURPOSE DPDT 7A 120V

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

RELAY GEN PURPOSE DPDT 7A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	VMAXAA

Coil Type	Non Latching
Coil Voltage	120 VAC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	7 A
Features	Lighted Indicator
Mounting Type	Socketable
Must Operate Voltage	104 VAC
Must Release Voltage	78 VAC
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Relay Type	General Purpose
Switching Voltage	250 VAC
Termination Style	Plug In, 8 Pin (Octal)

RELAY GEN PURPOSE DPDT 7A 120V

Part	Features	Contact Form	Coil Type	Must Operate Voltage	Termination Style	Coil Voltage	Switching Voltage	Contact Rating (Current)	Mounting Type	Must Release Voltage	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Relay Type
TE Connectivity Aerospace, Defense and Marine VMAXAA	Lighted Indicator	DPDT (2 Form C)	Non Latching	104 VAC	Plug In, 8 Pin (Octal)	120 VAC	250 VAC	7 A	Socketable	78 VAC	55 °C	-10 °C	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay DPDT (2 Form C) 120VAC Coil Socketable
