70-220.2S

Active

EAO

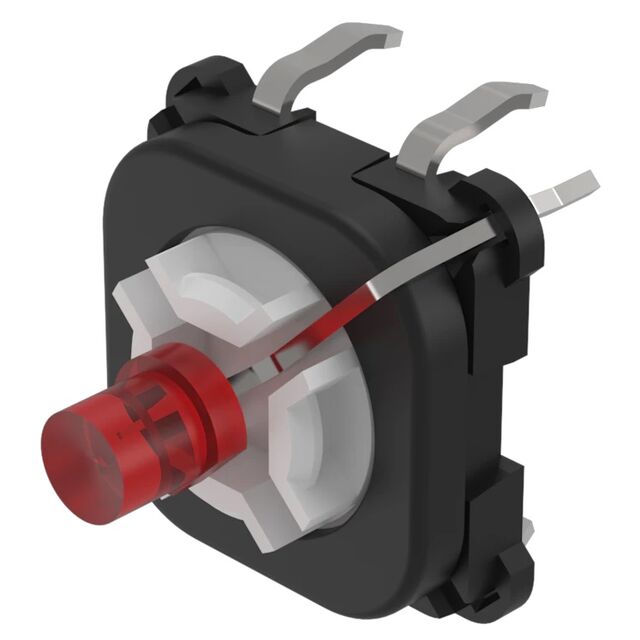

SWITCHING ELEMENT WITH ILLUMINATION SINGLE CHIP LED RED, 2,0VDC/20MA, 1S AU

Search across all available documentation for this part.

Active

EAO

SWITCHING ELEMENT WITH ILLUMINATION SINGLE CHIP LED RED, 2,0VDC/20MA, 1S AU

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	70-220.2S	70-220 Series

	-	-
Actuator Type	Plunger for Cap	Plunger for Cap
Circuit	SPST-NO	SPST-NO
Current Rating (Amps)	100 mA	100 mA
Illumination Type, Color	Red, LED	Red, LED, Green
Illumination Voltage (Nominal)	2 VDC	2 - 3.2 VDC
Mounting Type	Through Hole	Through Hole
Switch Function	Off-Mom	Off-Mom
Termination Style	PC Pin	PC Pin
Type	Illuminated, Standard	Illuminated, Standard
Voltage Rating - AC	42 V	42 V
Voltage Rating - DC	42 V	42 V

SWITCHING ELEMENT WITH ILLUMINATION SINGLE CHIP LED RED, 2,0VDC/20MA, 1S AU

Part	Mounting Type	Actuator Type	Current Rating (Amps)	Circuit	Type	Switch Function	Voltage Rating - DC	Illumination Type, Color	Illumination Voltage (Nominal)	Voltage Rating - AC	Termination Style
EAO 70-220.2S	Through Hole	Plunger for Cap	100 mA	SPST-NO	Illuminated, Standard	Off-Mom	42 V	LED, Red	2 VDC	42 V	PC Pin
EAO 70-220.5S	Through Hole	Plunger for Cap	100 mA	SPST-NO	Illuminated, Standard	Off-Mom	42 V	Green, LED	3.2 VDC	42 V	PC Pin
EAO 70-220.3
EAO 70-220.4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard, Illuminated Through Hole
