108229
ActiveBasler Inc.
1920 X 1200, 160 FPS, MONO
108229
ActiveBasler Inc.
1920 X 1200, 160 FPS, MONO
Description
General part information
108229

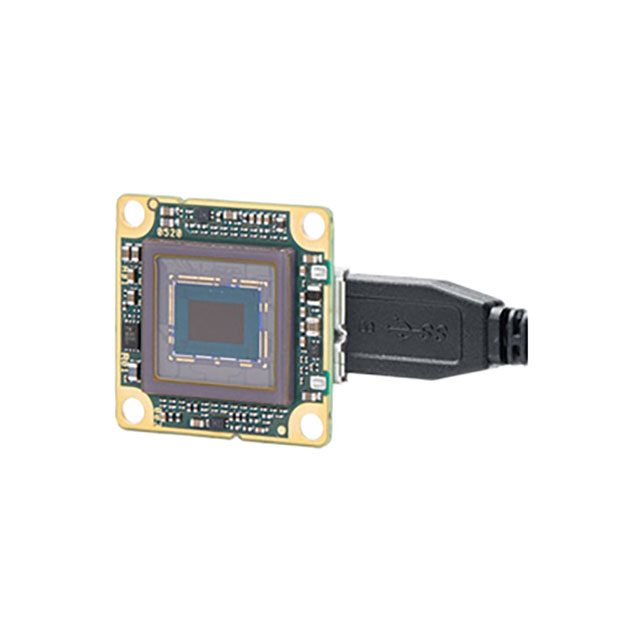

CMOS Image Sensor 1920H x 1200V 3.45µm x 3.45µm
Technical Specifications
Parameters and characteristics for this part
| Specification | 108229 |
|---|---|
| Active Pixel Array Horizontal | 1920 pixels |
| Active Pixel Array Vertical | 1200 pixels |
| Frames per Second | 160 fps |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | 0 °C |
| Package / Case | Module |
| Pixel Size (Length) | 3.45 µm |
| Pixel Size (Width) | 3.45 µm |
| Type | CMOS |
| Voltage - Supply | 3.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
