1092QC5-12V

Active

Visual Communications Company - VCC

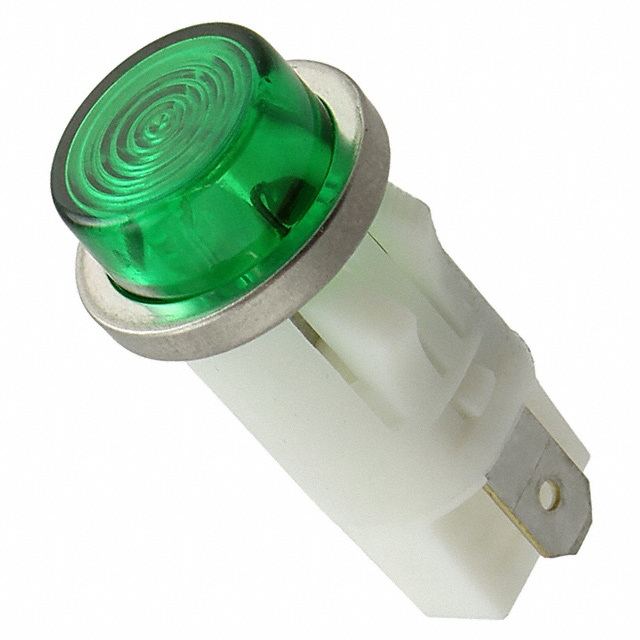

LED PMI, GREEN, HI-HAT, 12V, 3/1

Deep-Dive with AI

Search across all available documentation for this part.

1092QC5-12V

Active

Visual Communications Company - VCC

LED PMI, GREEN, HI-HAT, 12V, 3/1

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.40
		10	$ 4.51
		100	$ 3.54
		500	$ 3.15
		1000	$ 3.03
		2000	$ 2.94

Description

General part information

1092Q Series

LED Panel Indicator Green Diffused 12V 25mA Quick Connect - 0.187" (4.7mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1092QC5-12V	1092Q Series

Current	25 mA	25 mA
Lamp Color	Green	Red, Clear, Green, Amber, Blue
Lens Color	Green	Red, Colorless, Green, Amber, Blue
Lens Size	-	T-1 3/4
Lens Size	-	5 mm
Lens Style	-	Round with Domed Top, Round with Convex Top
Lens Transparency	Diffused	Diffused, Clear
Millicandela Rating	12000 mcd	3200 - 13000 mcd
Panel Cutout Dimensions	12.7 mm	12.7 mm
Panel Cutout Dimensions	0.5 in	0.5 in
Panel Cutout Shape	Round	Round
Ratings	DC	DC, AC/DC, AC
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm)
Type	LED	LED
Voltage	12 V	12 - 125 V
Wavelength - Peak	-	468 nm

1092Q Series

LED PMI, RED, HI-DOME, 28V, 3/16

Part	Voltage	Lens Transparency	Lens Color	Lens Style	Panel Cutout Dimensions	Panel Cutout Dimensions	Termination Style	Ratings	Current	Type	Lamp Color	Millicandela Rating	Panel Cutout Shape	Lens Size	Lens Size	Wavelength - Peak
Visual Communications Company - VCC 1092QA1-28V	28 V	Diffused	Red	Round with Domed Top	12.7 mm	0.5 in	Quick Connect - 0.187" (4.7mm)	DC	25 mA	LED	Red	13000 mcd	Round
Visual Communications Company - VCC 1092QD2-28V	28 V	Clear	Colorless	Round with Convex Top	12.7 mm	0.5 in	Quick Connect - 0.187" (4.7mm)	AC/DC	25 mA	LED	Clear	7000 mcd	Round	T-1 3/4	5 mm	468 nm
Visual Communications Company - VCC 1092QM2-12V	12 V	Clear	Colorless	Round with Domed Top	12.7 mm	0.5 in	Quick Connect - 0.187" (4.7mm)	AC/DC	25 mA	LED	Clear	7000 mcd	Round	T-1 3/4	5 mm	468 nm
Visual Communications Company - VCC 1092QA1-12V	12 V	Diffused	Red	Round with Domed Top	12.7 mm	0.5 in	Quick Connect - 0.187" (4.7mm)	DC	25 mA	LED	Red	13000 mcd	Round
Visual Communications Company - VCC 1092QA5-125VAC	125 V	Diffused	Green	Round with Domed Top	12.7 mm	0.5 in	Quick Connect - 0.187" (4.7mm)	AC	25 mA	LED	Green	12000 mcd	Round
Visual Communications Company - VCC 1092QD3-12V	12 V	Diffused	Amber	Round with Domed Top	12.7 mm	0.5 in	Quick Connect - 0.187" (4.7mm)	DC	25 mA	LED	Amber	13000 mcd	Round
Visual Communications Company - VCC 1092QC2-12V	12 V	Clear	Colorless		12.7 mm	0.5 in	Quick Connect - 0.187" (4.7mm)	AC/DC	25 mA	LED	Clear	7000 mcd	Round	T-1 3/4	5 mm	468 nm
Visual Communications Company - VCC 1092QD5-125VAC	125 V	Diffused	Green	Round with Domed Top	12.7 mm	0.5 in	Quick Connect - 0.187" (4.7mm)	AC	25 mA	LED	Green	12000 mcd	Round
Visual Communications Company - VCC 1092QA3-125VAC	125 V	Diffused	Amber	Round with Domed Top	12.7 mm	0.5 in	Quick Connect - 0.187" (4.7mm)	AC	25 mA	LED	Amber	13000 mcd	Round
Visual Communications Company - VCC 1092QA2-125VAC	125 V	Diffused		Round with Domed Top	12.7 mm	0.5 in	Quick Connect - 0.187" (4.7mm)	AC	25 mA	LED	Clear	7000 mcd	Round
