BPJF03X

Active

Switchcraft Inc.

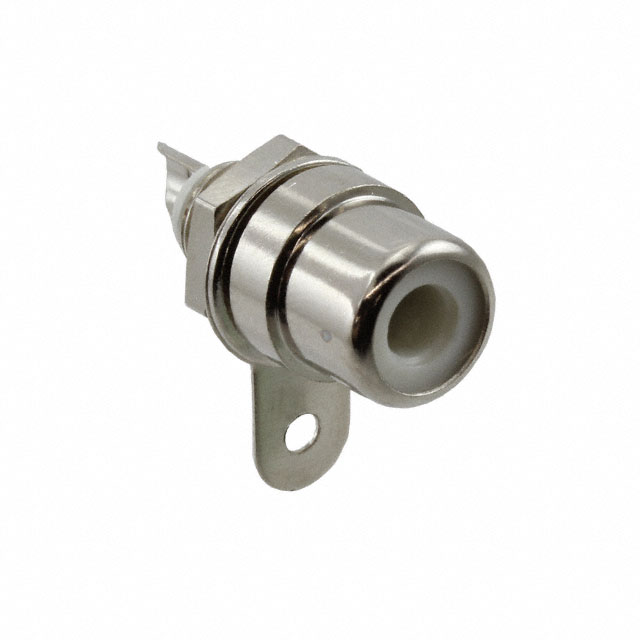

CONN RCA JACK MONO 3.2MM PNL MT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCA JACK MONO 3.2MM PNL MT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BPJF03X	BPJF03 Series

Actual Diameter [custom]	8.25 mm	8.25 mm
Actual Diameter [custom]	0.134 "	0.134 "
Actual Diameter [custom]	3.4 mm	3.4 mm
Actual Diameter [custom]	0.325 "	0.325 "
Body Color	Silver	Silver
Body Material	Brass	Brass
Connector Type	Phono (RCA) Jack	Phono (RCA) Jack
Contact Material	Brass	Brass
Contact Material - Plating	-	Gold
Contact Material - Plating [custom]	Nickel	Nickel
Features	Mounting Hardware, Grounding Tab	Mounting Hardware, Grounding Tab
Gender	Female	Female
Includes	Connector, Washer, Nut	Connector, Washer, Nut
Industry Recognized Mating Diameter [diameter]	9 mm, 3.2 mm	3.2 - 9 mm
Insulation Color	White	White
Internal Switch(s)	False	False
Number of Positions/Contacts [custom]	2	2
Number of Positions/Contacts [custom]	2	2
Panel Hole Size	10.2 mm	10.2 mm
Panel Hole Size	0.402 in	0.402 in
Shielding	Unshielded	Unshielded
Signal Lines	Mono	Mono
Termination	Solder Eyelet(s)	Solder Eyelet(s)
Thread Size	1/4"-32	1/4"-32

CONN RCA JACK MONO 3.2MM PNL MT

Part	Contact Material	Industry Recognized Mating Diameter [diameter]	Panel Hole Size	Panel Hole Size	Connector Type	Body Material	Signal Lines	Contact Material - Plating [custom]	Body Color	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Internal Switch(s)	Thread Size	Shielding	Insulation Color	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Includes	Gender	Termination	Features	Contact Material - Plating [custom]
Switchcraft Inc. BPJF03AUX	Brass	3.2 mm, 9 mm	10.2 mm	0.402 in	Phono (RCA) Jack	Brass	Mono	Gold	Silver	2	2		1/4"-32	Unshielded	White	8.25 mm	0.134 "	3.4 mm	0.325 "	Connector, Nut, Washer	Female	Solder Eyelet(s)	Grounding Tab, Mounting Hardware
Switchcraft Inc. BPJF03X	Brass	3.2 mm, 9 mm	10.2 mm	0.402 in	Phono (RCA) Jack	Brass	Mono		Silver	2	2		1/4"-32	Unshielded	White	8.25 mm	0.134 "	3.4 mm	0.325 "	Connector, Nut, Washer	Female	Solder Eyelet(s)	Grounding Tab, Mounting Hardware	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder Eyelet(s)
